Prmium Series 4wd winch 9500lb
Click here for details.

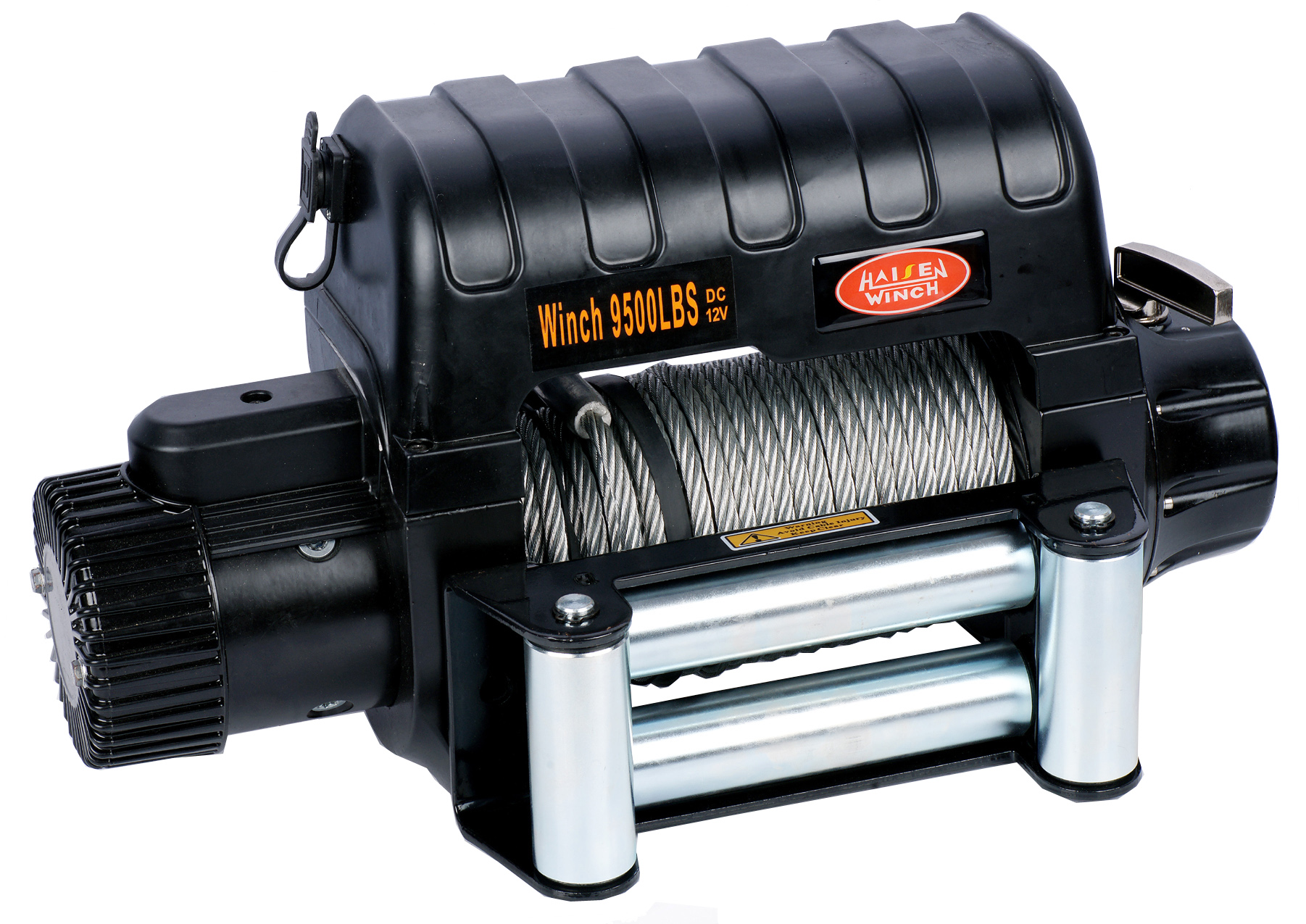

Offroad winch HS-9.5i is one of our new products. It's control box connect with the main body of winch, preventing the water seep into the control box effectivly. This model supply wire rope and dyneema rope for your choosing. At first please make sure your car have enough space to set it.
Line Pull Lbs.(Kgs) |
Line Speed FT./min(M/min) |
Motor Current |
Pull By Layer Layer/Lbs(Kgs) |
0 |
46 (14.0) |
70 |
1/9500 (4315) |
2000 (908) |
16.7 (5.1) |
130 |
2/8200 (3725) |
4000 (1815) |
11.8 (3.6) |
200 |
3/7100 (3225) |
6000 (2725) |
9.2 (2.8) |
275 |
4/6100(2770) |
8000 (3630) |
7.5 (2.3) |
350 |
|
9500 (4315) |
6.6 ( 2.0) |
410 |
Specifications
- Part Number: HS-P9.5i
- Rated Line Pull: 9,500lbs. ( 4,320 kgs ) single-line
- Intended Use/Application: Vehicle Recovery/For Trucks, Jeep and SUVs
- Motor: 5.5 hp Series Would
- Remote Control: Remote switch, 12' ( 3.7m ) lead and Wireless ( Optional )
- Gear Train: 3-Stage Planetary
- Gear Ratio: 165: 1
- Clutch ( Free spooling ): Sliding Ring Gear
- Brake: Automatic In-The-Base
- Duty Cycle: Intermittent
- Drum Diameter/Length: 2.51'' x 5.28'' ( 64mm x 134mm )
- Wire Rope ( Dia x Len ):3/8'' x 89' ( 9.5mm x 27m )
- Fairlead: 4-way Roller
- Battery Leads: 2 Gauge, 72'' ( 1.83m )
- Winch Dimension: 21.5'' L .x 6.5'' D .x 11'' H .( 545mm L. x 165mm D .x 278mm H. )
- Packing Dimension: 26.4'' L. x 8.5'' D. x 18.7'' H. ( 670mm L. x 215mm D. x 475mm H. )
- Packing Weight : 86lbs ( 39kgs )
- Mounting Bolt Pattern: 10'' X 4.5''( 254mm x 114.3mm )
- Recommended Battery: 650 CCA minimum for winching
- CE Winches : CE products are designed to meet European Standards
Features
- new series
- short time loading
- beautiful appearance
- improved performance
Certificate
- ISO
- CE
- ROHS
