Long Range RFID Reader (Reading EM Proximity Card)

Product ID: PFH-9210-60

Send Inquiry
RFID Proximity advanced long range reader PFH-9210-60 Proximity hand free system with High technologies performance for 60 cm .

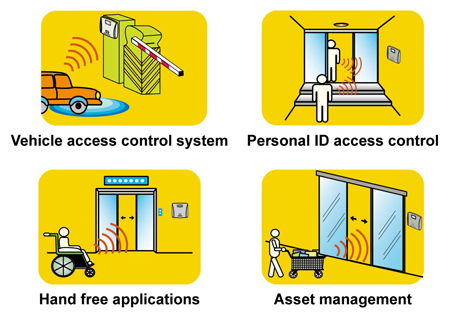

The Pegasus PFH-9210-60 is a reader for vehicle or personal access application. Especially for vehicle control, the RFID Hand free card can be stick to any where within the car even through windshields and clothes but not on the metal and to get access to the gate or any electrical door, just approach to the effective distance without getting off the car or opening the window.

Dimensions 270(L) x 273(W) x 39(H)mm
Weight 2 kg ± 5%
Operation temperature -20°C ~ 60°C
Humidity 10%~90% RH, Non condensation
Power supply DC12V, 200 mA
Mounting Surface Mount, waterproof
Card 125KHz EM proximity card
Reading range Max. 60 cm
Frequency of operation 125KHz
Interface RS-485, RS -232C, Wiegand, Wiegand 42 bit(optional)
Specifications
.We reserve the right to change the specification without notice or obligation!
Features
  • Built-in Beeper sound
  • PFH-9210-60 is reading proximity card without powerful battery for access control
  • Epoxy potted for environmental protection
  • Weather resistant and water proof
Certificate
  • CE
  • FCC

Main Products

Personal, Lifts, Parking Access control, Time and attendance ,RFID modules , Biometric, Electric lock, Long Range RFID System
