Proximity card access controller/reader

Product ID: PP-5878 / PP-5707

Send Inquiry
•Access control system with integral Proximity/RF/reader into one unit.

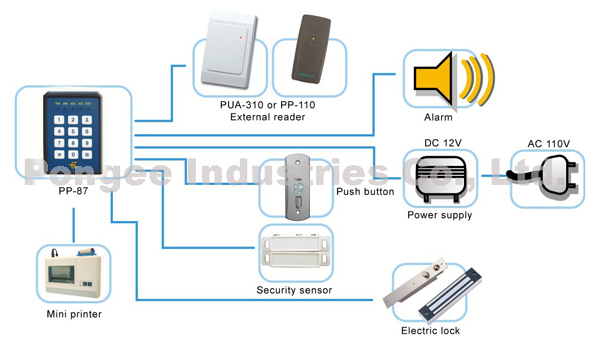

•Can be On/Off line use and external another reader for IN/OUT application.

•Up to 9,999 cards capacity for Access control function.

•Model: PP-5878 is Standalone type proximity card access controller.

•Model: PP-5707 is On-line type proximity card access controller.
Specifications
  • Dimensions:115(L) x 78(W) x 31(H)mm
  • Weight:310g ± 5%
  • Operation temperature:-15°C ~ 55°C
  • Humidity:20%~90% RH, Non condensation
  • Power supply:12 V DC
  • Reading range:5 to 15 cm
  • Frequency of operation:ASK 125KHz
  • Card holders:9,999cards
  • Type:Surface mount, water proof
  • Keypad:
    • With brief 3 x 4 membrane keypad for system programming and password entry
  • Monitor inputs:Door contact, Exit push button,tamper switch
  • Transmission rate:4,800 bps, N.8.1 (optional for 300~19200bps)
  • Interface:RS-485 or Wiegand output or TTL(optional)
Features
  • Easy to install, low and designed for indoor or outdoor use.
  • With tamper switch and two loop sensor inputs to trigger alarm as case is tampered or loop is intruded.
  • Programmable door release & monitoring time, error trials, alarm time.
  • Non-volatile EEPROM to store system parameters for 10 years.
  • The Pegasus proximity readers are reading EM chip proximity card and proximity keyfob ... etc.
  • LED indicator to show the operation status.
  • With CPU watch-dog function to prevent malfunction.
  • We reserve the right to change the specification without notice or obligation!
