LED Lighting Solution
Click here for details.Input Voltage | Part No. | Color(Typ.) | LED | LM(Typ.) | Secondary Optics Lens |
---|---|---|---|---|---|
AC 100~260V | AL23-11-SC3W-E | White(6000K) | 1Watt*11 | 100*6 | Without Lens |
AC 100~260V | AL23-11L-SC3W-E-08 | White(6000K) | 1Watt*11 | 100*6 | With Lens 8° |
AC 100~260V | AL23-11L-SC3W-E-25 | White(6000K) | 1Watt*11 | 100*6 | With Lens 25° |
AC 100~260V | AL23-11L-SC3W-E-40 | White(6000K) | 1Watt*11 | 100*6 | With Lens 40° |
AC 100~260V | AL23-11L-SC3W-E-60 | White(6000K) | 1Watt*11 | 100*6 | With Lens 60° |
AC 100~260V | AL23-11-SC3S-E | Warm White(3000K) | 1Watt*11 | 70*6 | Without Lens |
AC 100~260V | AL23-11L-SC3S-E-08 | Warm White(3000K) | 1Watt*11 | 70*6 | With Lens 8° |
AC 100~260V | AL23-11L-SC3S-E-25 | Warm White(3000K) | 1Watt*11 | 70*6 | With Lens 25° |
AC 100~260V | AL23-11L-SC3S-E-40 | Warm White(3000K) | 1Watt*11 | 70*6 | With Lens 40° |
AC 100~260V | AL23-11L-SC3S-E-60 | Warm White(3000K) | 1Watt*11 | 70*6 With Lens 60° |
Specifications
- Secondary Optics Lens For CREE XRE LED, Viewing angle : 8°/25°/40°
- Operating temperature range: -25 ~ + 70°C
- Storage temperature range : -25 ~ + 85°C
Features
- Input Voltage : AC100~260V
- E27 Base

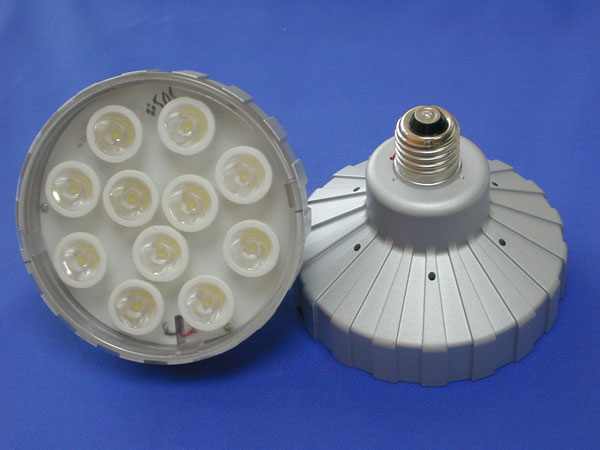

- PAR38 SPOT LIGHT
- Aluminum Housing
- CREE Lighting Class LED Inside
- Use CREE XR-E LED
- Secondary Optics Lens For CREE XR-E LED, Viewing angle : 8°/25°/40°/60°
- Indoor use
