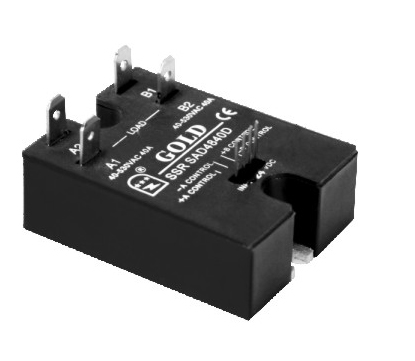

AC SSR of SAD double-channel

AC SSR of SAD double-channel

Click here for details.

AC SSR of SAD double-channel

Product ID: SAD series

Send Inquiry
Favourable price, good service, timely delivery, quality assurance, and packaging.

Production description

SolidStateRelay

Type selection

SAP4825D/D

Switching mode

Zero switching

Production date

July 4, 2011

LED ON indication(×2)

Green

Load type

Inductive

Approvals

UL,CUL,CE,

weight

0.095KG

Validate quantity

5 pcs

Validate way

CJ2672S Voltage-resistance Tester

SSR Dynamic performance Tester

Validate item

Standard

Result of testing

Pass/non-pass

INPUT

inspection

Control Voltage

4.5-32VDC

4.5-32VDC

Pass

Pick-up voltage

4.25VDC

4.25VDC

Pass

Drop-out voltage

2VDC

2VDC

Pass

Input current per pole @ max.input voltage

≤10m A

≤10m A

Pass

Response time pick-up @ 50 Hz

≤10ms

≤10ms

Pass

Response time drop-out @ 50 Hz

≤10ms

≤10ms

Pass

OUTPUT

inspection

Rated operational current

2*25AACrms

2*25AACrms

Pass

Minimum operational current

150mA

150mA

Pass

Non-rep.surge current t=10ms

300Ap

300Ap

Pass

Off-state leakage current

<3m A

<3m A

Pass

On-state voltage drop@rated current

≤1.6Vrms

≤1.6Vrms

Pass

Zero crossing detection

Yes

Yes

Pass

General inspection

Operational voltage rang

24 to 265VACrms



24 to 265VACrms



Pass

Non-rep.peak voltage

650Vp



650Vp



Pass

Rated insulation input-output /output-heatsink

4kV

4kV

Pass

Operational frequency range

45 to 65HZ

45 to 65HZ

Pass

LED ON indication (x2)

Yes

Yes

Pass

Zero voltage turn-on

< 15V

< 15V

Pass

Approvals

UL, c UL,CE

UL, c UL,CE

Pass

Thermal inspection

Operating temperature

-20℃to70℃

-20℃to70℃

Pass

Storage temperature

-20℃to80℃

-20℃to80℃

Pass

Junction temperature

≤125℃

≤125℃

Pass

Rth junction to case

1 pole

2 pole

1K/W

0.5K/W

1K/W

0.5K/W

Pass

Rth junction to ambient

≤ 20K/W

≤ 20K/W

Pass

Specifications
  • Load voltage: 40-530VAC
  • Max Load Current5A 10A 15A 25A 40A
  • Isolation between In& Out: ≥2500VAC
  • Isolation to case: ≥2500VAC
  • Control Voltage: 3-15VDC  15-32VDC
  • Control Current: 5mA-25mA(20mA@max input 32VDC)
  • Turn-on Voltage: ≤1.2VAC
  • Off-state Leakage: ≤2mA
  • Status indicator: In LED and out on LED
  • Operating Temperature: -40~80°C
  • Output: zero switching, random switching
