Stainless Steel ASi Monitor

Product ID: ALS600AS2

Send Inquiry
ALS series stainless steel ASi monitor including ALS400, ALS500 and ALS600 series were designed and manufactured by AFL Group through advance state-of-the-art engineering technology and its special patent technology which have the stainless steel ASi monitor to be solid, beautiful and with high-level quality. All of the ALS series stainless steel ASi monitor fully meet ISO5211, Namur and IP67 standards. The mechanical switch, proximity sensor, magnet sensor, ASi sensor and DeviceNet sensor are all available in ALS series stainless steel ASi monitor.

Based on 94/9/EC of 23 March, EN13980, EN60079-0:2006 and EN60079-1:2004 production standards, ALS400/500/600 series flame proof limit switch box is certified for use in hazardous areas (Class I, Div. 1&2, Group A, B, C and D, Ex d IIB T6, Ex d IIC T6)). Because of the stainless steel (304/316/316L) enclosure, ALS600 series limit switch box / stainless steel ASi monitor can offer excellent resistance to most corrosive chemicals as well as hazardous industrial atmospheres.

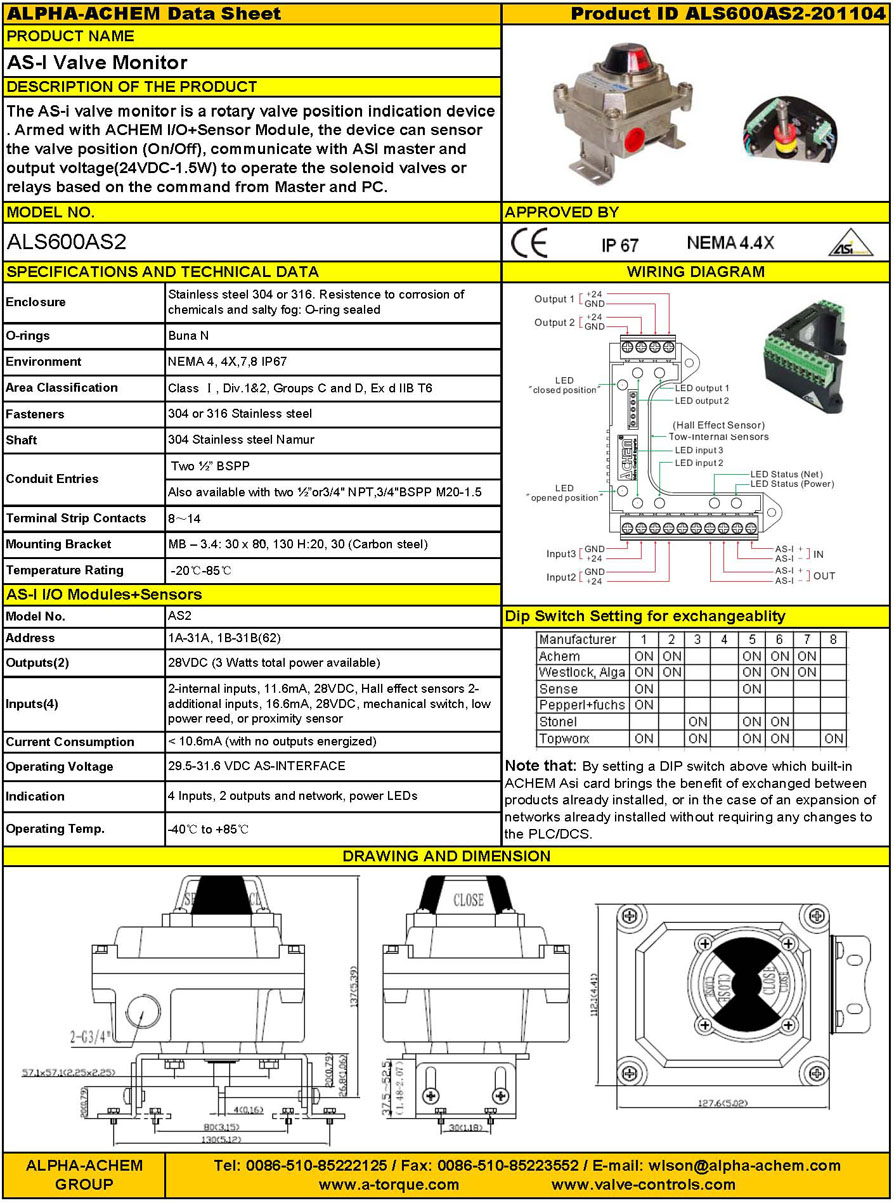

MODEL NO.ALS600AS2
PRODUCT LINE ACHEM ALS Series Explosion Proof Limit Switch Box
Enclosure Stainless steel 304 or 316. Resistence to corrosion of
  chemicals and salty fog: O-ring sealed
O-rings Buna N
Environment NEMA 4,4X,7,8 IP66
Area Classification Class Ⅰ, Div.1&2, Groups C and D, Ex d IIB T6
Fasteners 304 or 316 Stainless steel
Shaft 304 Stainless steel Namur
Conduit Entries Two ¾” NPT
  Also available with two ½” or ¾” BSPP,½” NPT, M20-1.5
Sensor Standard AS2: AS-Interface (2 Hall sensors), 20-28VDC,
Sensor Optional DN2: DeviceNet (2 Hall sensors), 20-28VDC,
Terminal Strip Contacts 8~10
Mounting Bracket MB – 3.3: 30 x 80, 130 H:20, 30 (304 Stainless steel)
Temperature Rating -20℃-85℃
