Stainless Steel Solenoid Valve

Product ID: ALV610F3C0

Send Inquiry
ACHEM ALV series NAMUR stainless steel and brass solenoid valve is designed and manufactured by us based on advanced air control technology and our special patent technology. The product armed with "environmentally-protected structure" offers environmental protection against the ingress of liquids, dusts or other foreign matter and provides a constant self cleaning action within every position shift enabling the solenoid valve to achieve over a million trouble-free cycles.

All the exhaust parts of this spool valve are connectable, providing better environmental protection. In the family of ALV series, NAMUR solenoid valves, the explosion proof coils can also be used for the application in any hazardous location and anywhere in the World. Below are the main features of the ACHEM ALV series NAMUR steel solenoid valve:

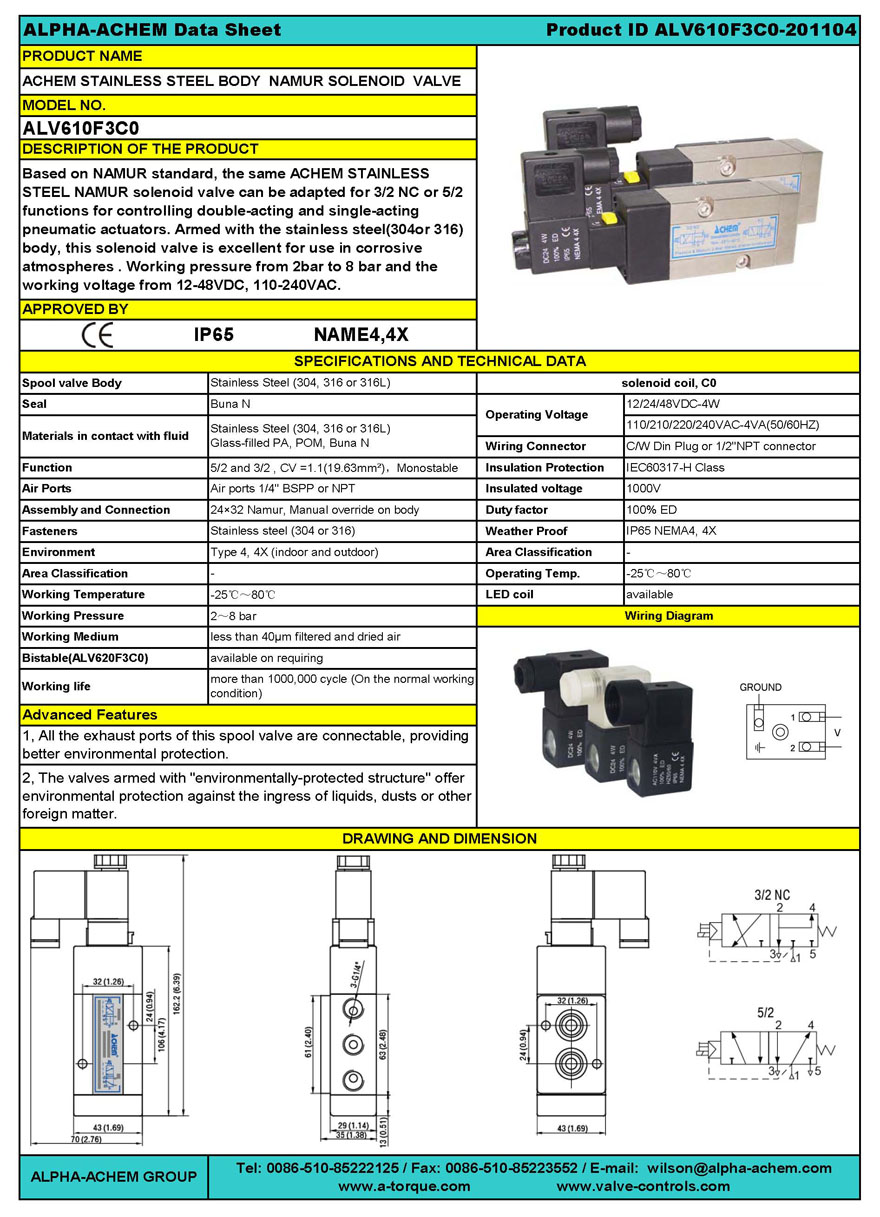

Model No.ALV610F3C0
Product Line ALV Series Namur Valve Controller (Namur Solenoid Valve)
Spool Valve/Body Stainless Steel (304, 316 or 316L), Buna Sealed
  5/2 and 3/2, CV=1.1, Air ports 1/4" BSPP or NPT
Connection 24x32 Namur connected, Manual override on the Body.
Working Environment -25℃~80℃, Outdoor and Indoor
Working Medium 40 micron filtered and dried air at 2~8Bar.
Approved by CE NEMA 4, 4X
Features
  • Suitable for use of 3/2 NC or 5/2 functions to control double-acting and single-acting pneumatic actuators.
  • Suitable for pilot operated with single/dual (mono/bi-stable) coils and low watt miniature pilot valve.
  • Suitable for use of standard coil or various flame-proof and intrinsically safe coils certified for use in all hazardous areas (Class I, Div. 1&2, Group A, B, C and D, Ex m II T6)
  • Suitable for use of high temperature (150℃) and cold temperature (-40℃) applications on requiring.
