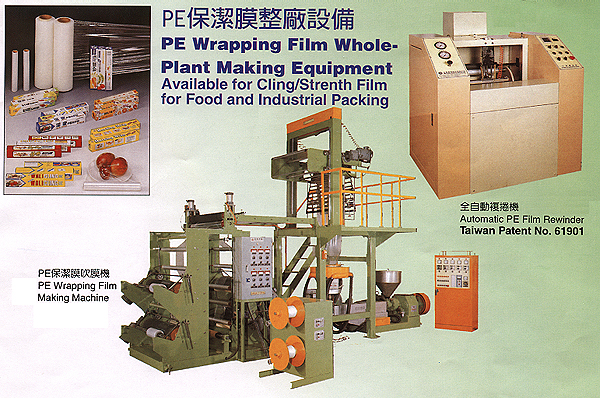

PE Cling Film / Stretch Film Whole Plant Making Equipment

Product ID: WPE

Send Inquiry
PE wrapping film making machine is available for producing PE cling film & PE stretch film for home & industrial using. We develop pump inlet adhesion technology to inlet the adhesion into screw, so that you can set percentage of adhesion you need, besides, you can save the resin cost. The screw can provide excellent mixing result to mix resin & adhesion. The take-up unit & winder are controller by co-speed controller to keep the same speed & avoid the film be stretched to get good and standard film quality. This machine also can change to 2-layer co-extrusion to produce one layer sticky & one layer non-sticky.
Features
  • Special design screw makes sure the excellent mixing of material & adhesion
  • Using pump inlets the adhesion to save resin cost
  • Co-speed controller keeps the film in standard quality
Model No. WPE-45H WPE-55H WPE-65H
Raw Material LLDPE, LDPE LLDPE, LDPE LLDPE, LDPE
Roller Width (mm) 750 900 1200
Layflat Width (mm) 200-600 250-800 300-1100
Film Thickness (mm) 0.008-0.08 0.008-0.08 0.008-0.08
Output (kg/hr.) 15-50 20-70 25-90
Output depending on film width, thickness, die size, material property etc. Output depending on film width, thickness, die size, material property etc. Output depending on film width, thickness, die size, material property etc. Output depending on film width, thickness, die size, material property etc.
Power Required (kw) 42 56 72
Machine Dimension (m) 6.2 x 2.4 x 4.1 6.3 x 2.6 x 4.2 6.6 x 2.9 x 4.5
PERFORMANCE PERFORMANCE PERFORMANCE PERFORMANCE
Gear Box Surface heat quenching & tempering equipped w/oil auto. Lubricated sys. Surface heat quenching & tempering equipped w/oil auto. Lubricated sys. Surface heat quenching & tempering equipped w/oil auto. Lubricated sys.
Gear Heat quenching & grinding treatment Heat quenching & grinding treatment Heat quenching & grinding treatment
Screw Material Alloyed steel, hard chrome plated and nitrided Alloyed steel, hard chrome plated and nitrided Alloyed steel, hard chrome plated and nitrided
Barred Material Alloyed steel, polished and nitrided treatment Alloyed steel, polished and nitrided treatment Alloyed steel, polished and nitrided treatment
Air Ring Alum. Alloyed, special desing for providing excellent & stable cooling Alum. Alloyed, special desing for providing excellent & stable cooling Alum. Alloyed, special desing for providing excellent & stable cooling
EXTRUDER EXTRUDER EXTRUDER EXTRUDER
Screw Diameter (mm) 45 55 65
Screw Ratio (L/D) 28: 1 30: 1 30: 1
Drive Moter (HP) V.S. 25 V.S. 40 V.S. 50
Die Type Rotary die w/rotary air ring Rotary die w/rotary air ring Rotary die w/rotary air ring
Die Diameter (mm) 200 250 300
Rotary Drive Motor 1/2 HP 1 HP 1 HP
Die Temp. Controller 2 zones 2 zones 2 zones
Blower (HP) 5 5 5
TAKE-UP UNIT TAKE-UP UNIT TAKE-UP UNIT TAKE-UP UNIT
Type fixed twoer w/adjustable movable take-up unit fixed twoer w/adjustable movable take-up unit fixed twoer w/adjustable movable take-up unit
Motor (HP) 1 HP W/Reducer 1 HP W/Reducer 1 HP W/Reducer
Take-Up Height (mm) 4100 4200 4500
Split Roller (set) 1 1 1
Split Knife (pcs) 3 3 3
WINDER WINDER WINDER WINDER
Type surface friction type & back-to-back w/four winding reels surface friction type & back-to-back w/four winding reels surface friction type & back-to-back w/four winding reels
Roller Width (mm) 750 x 2 sets / 500 x 2 sets 900 x 2 sets / 650 x 2 sets 1200 x 2 sets / 900 x 2 sets
Winding Motor (kg/cm) 1 HP x 4 sets w/reducer 1 HP x 4 sets w/reducer 1 HP x 4 sets w/reducer
Winding Diameter (mm) 700 x 2 sets 700 x 2 sets 700 x 2 sets
Spare Waste Collector (HP) 1/2 HP 1/2 HP 1/2 HP
Waste Collector (set) 2 sets 2 sets 2 sets
Waste Collector Motor (kg/cm) Torque 10 x 2 sets Torque 10 x 2 sets Torque 10 x 2 sets
TEMPERATURE CONTROL TEMPERATURE CONTROL TEMPERATURE CONTROL TEMPERATURE CONTROL
Heating Zone 5 5 6
