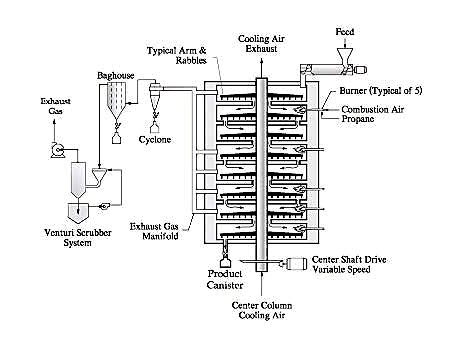

Multiple Hearth Furnace

Product ID: 09

Send Inquiry
Specifications
  • Application: Sintering and roasting of mineral or metal raw material, sludge, powder, high water content powder with low viscosity.
  • Advantage: Continuous production and better thermal efficiency.
  • Operation temperature: 300 ~ 1,100°C.
  • Atmosphere: Oxidation or reducing.
  • Main material: Inconel 600 / 601, SUS310S, 309, 316, 304, refractory.
  • Fuel: Natural gas, LPG, light oil, heavy oil.
  • Production rate: 200kg/h ~ 5,000kg/h.
  • Heating time: 0.5 ~ 3.0 hour.
