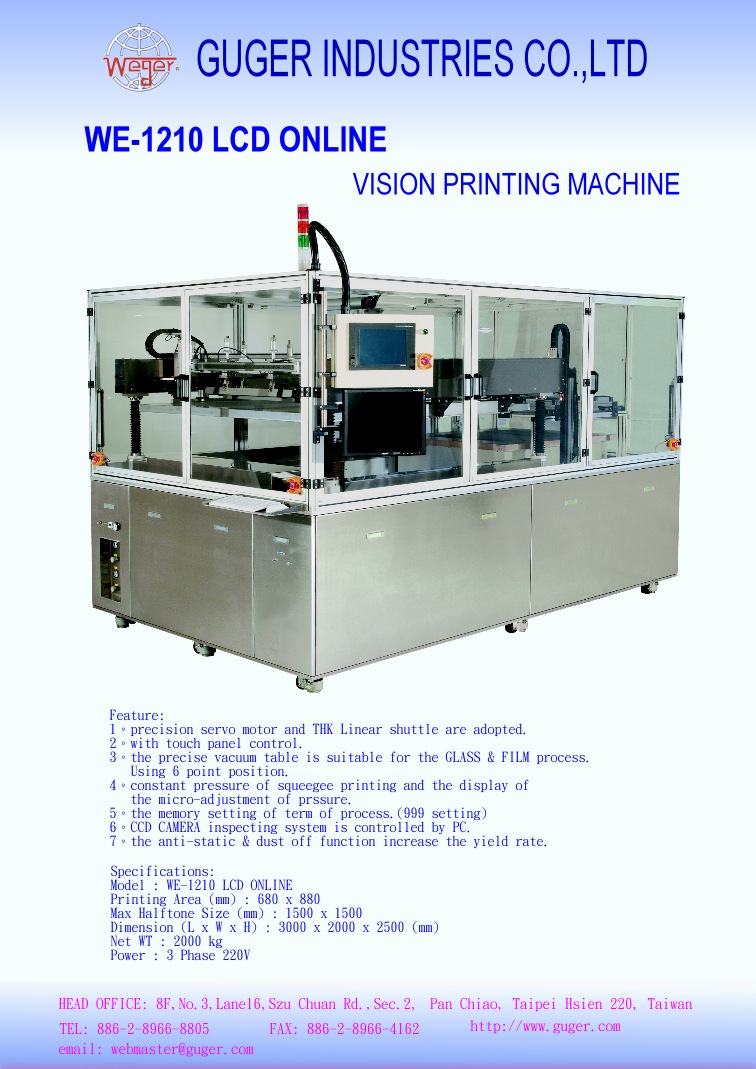

High Precision LCD Screen Printing Machine
Product ID: WE-1210 LCD ON LINE
- Model : WE-1106 LCD
- Printing Area (mm) : 680 x 880
- Max Halftone Size (mm) : 1500 x 1500
- Max Thickness of Print (mm) : 0-10
- Dimension (L x W x H) : 3000 x 2000 x 2500 (mm)
- Net WT : 2800 kg
- Power : 3 phase 220V
- 4 post printing construction keeps the printing quality stable.
- Precision Servo Motor and THK Linear shuttle are adopted.
- Touch panel control.
- The precise vacuum table is suitable for the GLASS & FILM process. Using 6 point position.
- Constant pressure of squeegee printing and the squeegee, flood coater blade,stencil and ink .
- PLC controlling system can reduce the breakdown to maintain easily.
- The printing speed, stroke and GAP can be recorded as memory setting.
- The memory setting of term of process.(999 setting)
- pneumatic stencil lock device: it uses 8 point cylinder locking to ensure no displacement for the stencil.
- The anti-static & dust off function increase the yield rate.
Main Products:
Screen Printers, Pad Printers, Hot Stamping, Screen Printers Equipment, Stencil Maker
