UF-312H

Product ID: UF-312H

Blower for divider, basement and whole house of usedetc. They can be mounted vertically or horizontally and both equip in front duct or in end of duct, or arrange in the duct of compress wind.

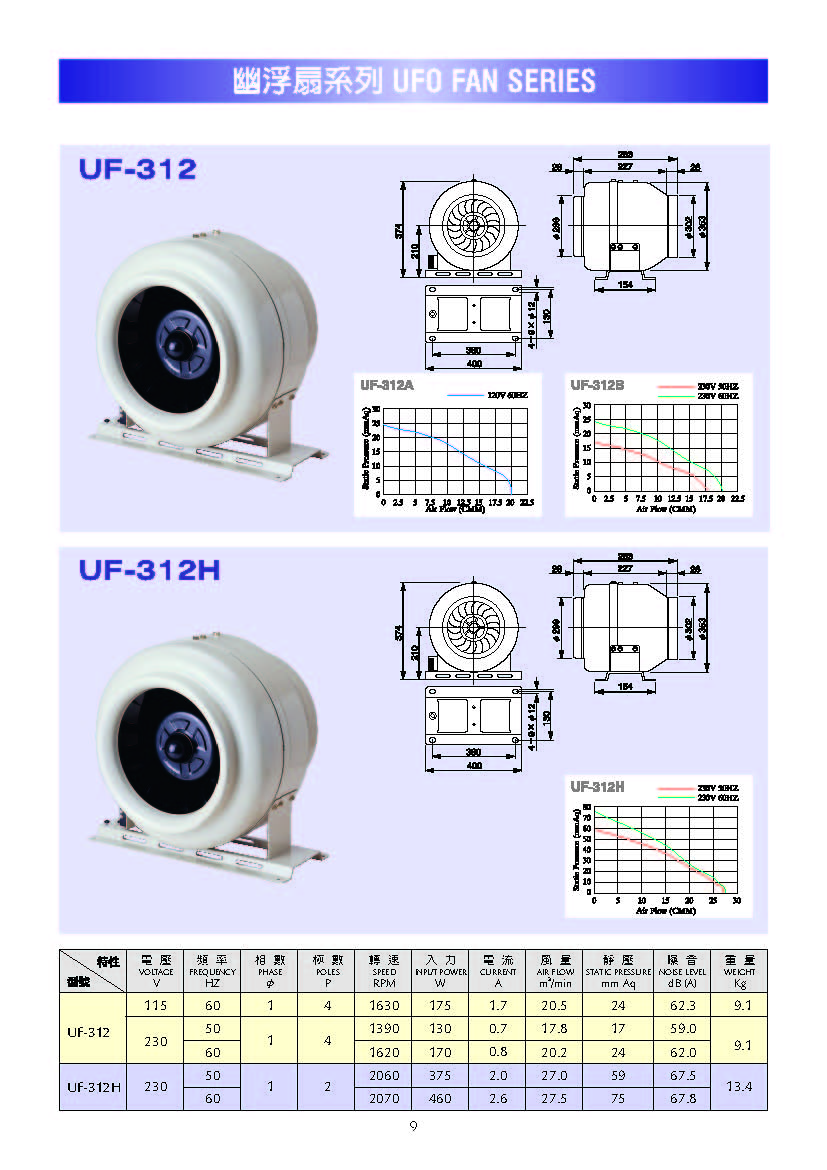

Model Voltage Frequency Phase Poles Revolution Current Power Static
Pressure
Air Flow Sound
Leve
V Hz Φ P RPM A W mm/Aq m³/min dB(A)
UF-312 120 60 1 4 1630 1.7 175  24 20.5 62.3
UF-312 230 50 1 4 1390 0.7 130  17 17.8 59.0
60 1620 0.8 170 24 20.2 62.0
UF-312H 230 50 1 2 2060 2.0  375 59 27.0 67.5
UF-312H 230 60 1 2 2070 2.6  460 75 27.5 67.8


Minimum Order: Negotiable TEL: 886-2-2268-3215 / 2268-3217 FAX: 886-2-2268-3219
