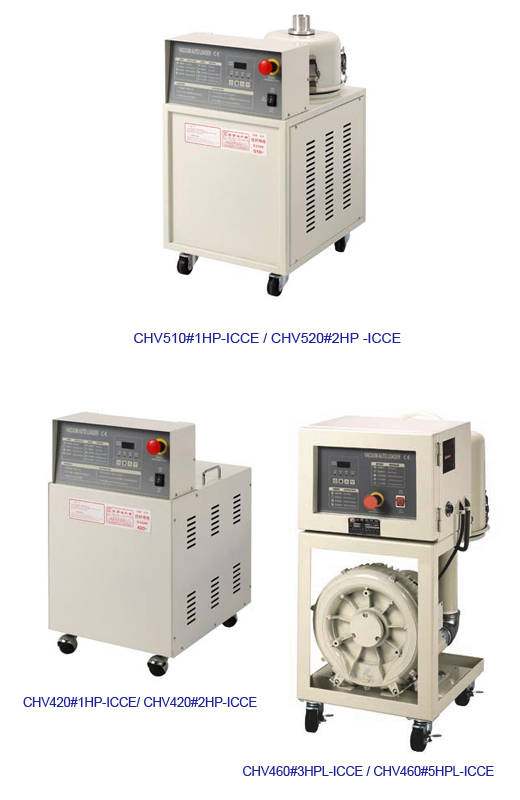

CE Split Type Vacuum Autoloader

Product ID: 5-3

Send Inquiry

Use three phase, quiet, powerful induction motor and equip with an alarm and auto fan-reverse function .The main controller and suction hopper are split. Easy for operation and maintenance, convenient and safe. SGS provides CE mark, We provide models from 1HP to 10HP model .All series provide microprocessor control panel.



Remark

1.We reserve the right to change specifications without prior notice.

2.For microprocessor control model, "IC" is added behind its short model name.

3.For CE general model, "CE" is added behind its short model name.

4.For CE microprocessor control model, "ICCE" is added behind its short model name.

Model

Motor

Source

Conveying Capacity

Conveying Height

Size
(L*W*H)(mm)

Weight

Type

Specification

Main

Suction Hopper

CHV-320# -CE

Carbon Brush

1100W

1 PHASE

200-240V

400kg/hr.

4M

380*380*580

23 kg

8 kg

CHV420#

1HP-ICCE

Induction

1HP

3 PHASE

220-480V

400kg/hr.

4M

590*400*470

41 kg

8 kg

CHV-420#

2HP-ICCE

Induction

2HP

3 PHASE

220-480V

550kg/hr.

7M

590*400*470

55 kg

8 kg

CHV-510#

1HP-ICCE

Induction

1HP

3 PHASE

220-480V

400kg/hr.

4M

503*380*720

50 kg

8 kg

CHV-520#

2HP-ICCE

Induction

2HP

3 PHASE

220-480V

550kg/hr.

7M

503*380*720

55 kg

8 kg

CHV-460#

3HPL-ICCE

Induction

3HP

3 PHASE

220-480V

800kg/hr.

8M

520*420*880

620*420*880
(L)

56 kg

61 kg
(L )

20 kg

CHV-460#

5HPL-ICCE

Induction

5HP

3 PHASE

220-480V

1000kg/hr.

10M

520*420*880

620*420*880
(L )

62 kg

67 kg
(L )

20 kg


CHV460# series can be made up to 10HP on customers' demand.
Features
  • Equip with an alarm and auto fan-reverse function , easy to clean filter screen and feed tube dust.(except CHV-320 # series)
  • Motor protective device.
  • Alarm for shortage of material.
  • Stainless steel material suction hopper.
  • Main controller is fitted with an air cleaner (except CHV-420# seies).
