Hydraulic Metal Tube Sealing Machine Three Process Module Ar

Hydraulic Metal Tube Sealing Machine Three Process Module Ar

Click here for details.

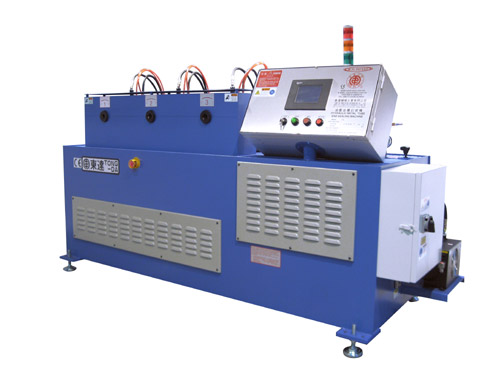

Tube end sealing machine

Product ID: TD-31025 / TD-31040 / TD-31040

Send Inquiry
Tube or pipe assembly products can be a complete or not complete tube end sealing . Its used in the industrial of baby stroller, kids tricycle, baby playpen, bicycle, motorbike, automobile, exercise equipment, gas spring, buffer, gas lift, deck chair, chaise lounge, furniture, suit hanger, lighting fixtures, house wares, sanitary wares, recreational facilities, rehabilitation and medical instruments, stainless chopsticks,…etc.
Features
  • The sealed tube ap
  • plication will be plastic cover free and no need of tube end welding. Complete or not complete tube end sealing is alternative according to client's requirements .
  • Dimension of the Circular arc of the tube end can be changed according to client's requirements.
  • Three process tooling will be running simultaneity , efficient aluminum, copper, stainless steel, etc.
  • Three process tooling will be running simultaneity , efficient productive and noise free .
  • Simple operation with quick and safe manual control , a professional operator will not be required .
  • Rapid mold shift device makes replacement of mold and point adjustment easier and quicker .
  • Compulsory air cooling system permits the machine to work steadily; no additional cooling pipeline is required.
  • Finished tube end has safe quality and nice exterior, and is secure from plastic cover falling off or skin scraped.
Models TD-31025 Three process module arc top type TD-31040 Three process module arc top type TD-31040-1 Single process module arc top type
Outer diameter of tube 10 ~ 25mm 10 ~ 40mm 10 ~ 40mm
Thickness of tube 0.8mm~1.2mm Tube diam. and thickness must match well. 0.8mm~2.0mm Tube diam. and thickness must match well. 0.8mm~2.0mm Tube diam. and thickness must match well.
Length of tube unlimited unlimited unlimited
Speed of sealing tube More than 8 seconds, according to tube diam. and thickness More than 8 seconds, according to tube diam. and thickness More than 8 seconds, according to tube diam. and thickness
Horsepower 6 HP 11 HP 5 HP
Total length 2205 mm 2285 mm 1405 mm
Total width 825 mm 825 mm 825 mm
Total height 1185 mm 1185 mm 1185 mm
Net weight 790 kgs 910 kgs 450 kgs
Gross weight 900 kgs 1030 kgs 510 kgs
Certificate
  • CE

Main Products

Patented Hydraulic Metal Tube End Sealing Machine,High Speed Air Round Tube Roll Cutter Machine,Hydraulic Tube grooving machine,Development and Manufacture of Special-Purpose Machines
