Ring Blowers (Pressure Conveyance)

Product ID: TS Type

Send Inquiry
Operating Principle：When leaf wheel operate, it will create some air flow, which will be enforced by the surrounding air, and eventually the total air body will be pressured and moved to the air outlet and then goes out.
High Reliabilit：In the high pressure field, the blower is unique in durability of use, even when circumstance sudden changes it can still run safely and smoothly. Because of its simplicity in design, it needs almost no maintenance. With fine-cooling outer bearing, the blower also has the following strong point：
(1)High pressure.
(2)The bearing operates with low temperature.
(3)The lubrication gives extra durability in use.
(4)Easy maintenance.
Applications：
-Grain elevators
-Textile fiber collections
-Paper industry
-Sewage treatments
-Cement manufacturing
-Diesel burning
-Pulp industry
-Glass manufacturing
-Ice manufacturing
-Tunnel ventilation
-Fishery industry

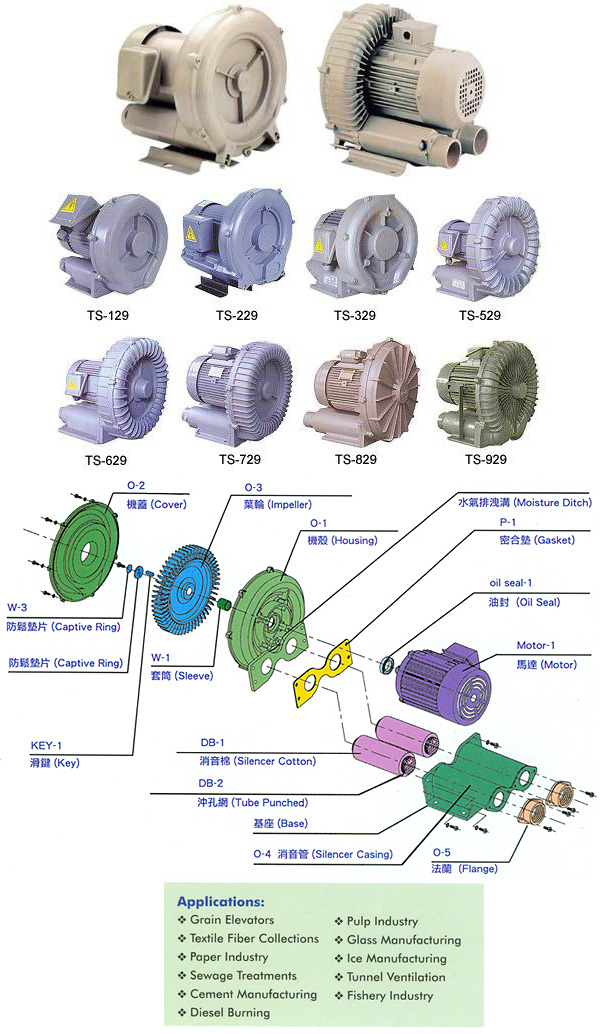

* Structural Graphs
* Specifications
* Performance Curve
* Outside Dimensions

Model No. Intlet / Outlet
Diameter (inch) 		Max. capactiy
50 / 60 HZ
(m³/min) 		Max. Pressure
50 / 60 HZ
(mmH2O) 		Motor
(Kw)
TS-018 PF 1'' 0.6 / 0.8 500 / 700 0.18
TS-037 PF 1 1/4'' 1.3 / 1.5 1000 / 1200 0.37
TS-075 PF 1 1/2'' 2.4 / 2.6 1600 / 1800 0.74
TS-150 PF 2'' 3.2 / 4.5 2000 / 2500 1.5
TS-220 PF 2'' 5 / 6.2 2500 / 2800 2.2
TS-370 PF 2'' 7 / 8.3 2800 / 3500 3.7
TS-550 PF 2 1/2'' 12 / 13 2900 / 3400 5.5
TS-750 PF 2 1/2'' 12 / 13 2900 / 3400 7.5
TS-1100 PF 4'' 20 / 24 2500 / 3000 11
TS-1500 PF 4'' 25 / 28 3000 / 3500 15
Specifications
  • Applications of the Pressure Conveyance
  • Pressures Applied：500 ~ 3500 mmH2O，0.6 ~ 28 kgf/cm²，0.18 ~ 15 Kw
  • The maximent permissible temperature and the gas temperature at the inlet is 40 ℃
Features
  • Low noise and vibration：Dynamic balancing minimizes vibration.
  • Dust-proofed shaft seal：Protects bearings from contaminated air stream and possible foreign particle damage.
  • High reliability：Directly connected motor shaft-impeller provides reliable, long term performance. No gears, belts, motor brushes or sliding blades to require periodic maintenance.
  • Space-efficient design：Unique design results in substantial airflows at moderate pressures in minimum space and weight.
  • Versatility：Easily throttled and changd from pressure to suction operation. May be mounted in a variety of fashiond.
  • Stable airflow：Centrifugal compressor design delivers smooth, stable airflow with no pulsations.
  • High-pressure airflow：Produces continuous high-pressure airflow. The Ring Blower is ideally suited to many industrial application.
  • No grease, no pollution：The leafwheel, when in operation,, is isolated from other parts of the machine, no need lubrication, so this means no cause of pollution at all.
  • Easy installation：The well-equipped blower can be easily installed at any place, any time, for air-compressing or air-vacuuming；can be set vertically or horizontally.
