Bar Feeder For Lathe

Bar Feeder For Lathe

Click here for details.

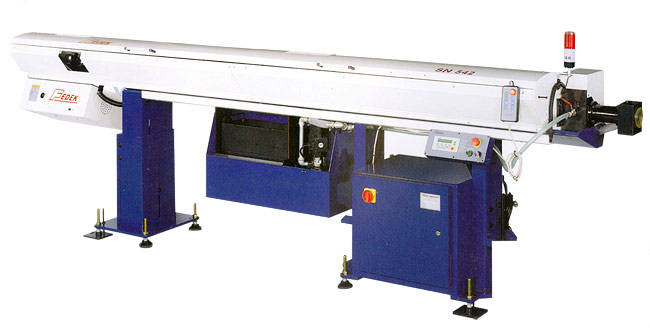

Bar Feeder For Lathe

Product ID: Sunny-542 (SN-542)

Send Inquiry
Specifications
  • SN-542-25
    • Bar diameter: Ø5 - 45 mm.
    • Max. bar length: 2,600 mm.
    • Magazine capacity: Ø10 mm x 28 pcs.
    • L x W: 3,300 x 590 mm.
  • SN-542-32
    • Bar diameter: Ø5 - 45 mm.
    • Max. bar length: 3,200 mm.
    • Magazine capacity: Ø10 mm x 28 pcs.
    • L x W: 3,900 x 590 mm.
  • SN-542-37
    • Bar diameter: Ø5 - 45 mm.
    • Max. bar length: 3,700 mm.
    • Magazine capacity: Ø10 mm x 28 pcs.
    • L x W: 4,400 x 590 mm.
Features
  • Bar feed is driven by Siemens controller and Mitsubishi servo motor.
  • Smart human / machine interface control provides convenient parameter settings.
  • Alarm display for convenient maintenance.
  • Synchronization device and extendable tube (optional).
  • Suitable for all type of CNC lathe.
  • Bushing type anti-vibration and buffering devices at front end.
  • Work-piece length confirmation functions.
  • Electrical control system meets CE standards.
  • Profiled bar feeding device.
  • Movable control box for convenient operation.
