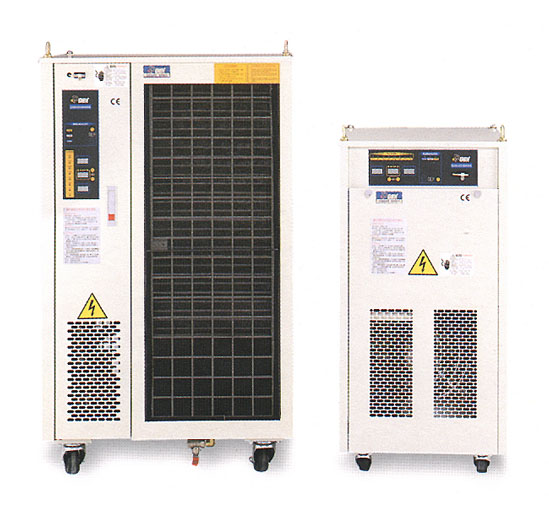

Water Cooler Series Specific FRO CNC Laser Cutting Engraver System

Product ID: CL Series

Send Inquiry
Cools the laser-cutting head.
Uses high pressure pump and water pressure circuit ensure system protection.
Uses 316 stainless steel compact brazed heat exchanger. Saves on energy consumption and ensure good heat exchange.
Has remote control operation and breakdown signal indication when connected to CNC laser cut machine.
Cools the laser head engraving or cutting head compartment.
Features
  • Application
    • Heavy laser (1000W-2500W) & small-type laser machines (50W-300W)
  • Sample Purchase
Model N/A CL-12 CL-24 CL-36 CL-60 CL-90 CL-120
Cooling capacity BTU/H 12,000 24,000 36,000 60,000 90,000 120,000
Cooling capacity KCAL/HR 3,000 6,000 9,000 15,000 22,500 30,000
Power Source V 3 Dia AC220V 50/60HZ 3 Dia AC220V 50/60HZ 3 Dia AC220V 50/60HZ 3 Dia AC220V 50/60HZ 3 Dia AC220V 50/60HZ 3 Dia AC220V 50/60HZ
Total overburdening current A 7.7 10.4 13 21 33 40
Water pump housepower HP 1/2 1/2 3/4 1 3 3
Water pump Discharge rate I/min 36 36 40 50 65 65
Water tank liter 30 40 70 86 120 200
Pipe size inch 3/4" x 3/4" 1" x 1" 1" x 1" 1" x 1" 1 1/4" x 1 1/4" 1 1/2" x 1 1/2"
Dimension (D x W x H) mm 500 x 460 x 932 490 x 690 x 1,155 690 x 805 x 1,155 790 x 900 x 1,285 790 x 1,270 x 1,890 790 x 1,270 x 1,890
Cooling medium R 22 22 22 22 22 22
Weight Kg 96 134 145 310 350 440
