Automatic Puller
Click here for details.
The puller operates in coordination with 420US.
Ton ~ 4400US TON extrusion press to produce various special industrial aluminum products. It is easy to operate and retrench manpower.

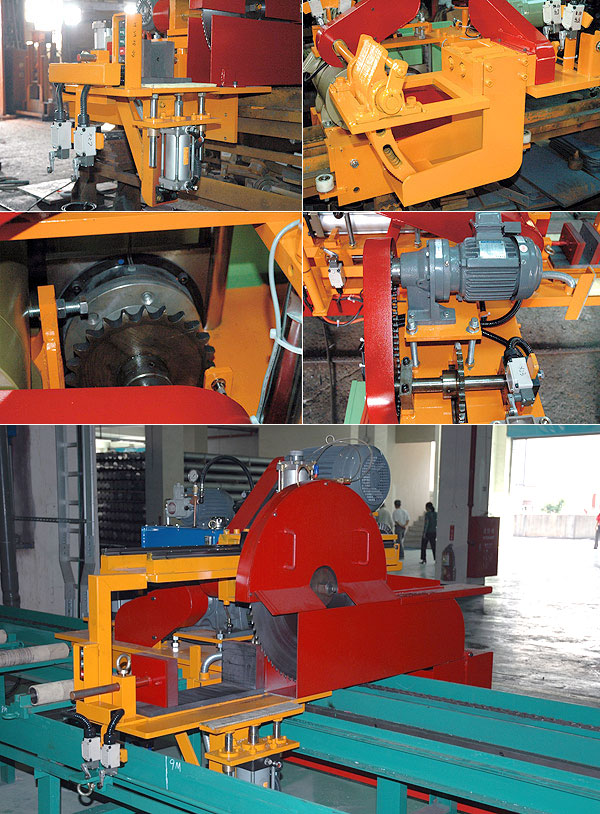

This machine is made of steel which can gauge length with front platen saw table. This machine uses D.C. motor drive; A.C. motor drives the jaw. Sprocket automatically clips aluminum profiles in coordination with chains. According to the extrusion press extruding speed, it can adjust the speed and twisting force of jaw appropriately. Thus, the accuracy of aluminum products can be attained. Return stroke uses magnetic brake. D.C. controlling system controls operating forward stroke or return stroke and pulling force. It can continue operating in coordination with extrusion press extruding recycles by working speed of 1.8 M/second to 2.2 M/second.
Ton ~ 4400US TON extrusion press to produce various special industrial aluminum products. It is easy to operate and retrench manpower.
This machine is made of steel which can gauge length with front platen saw table. This machine uses D.C. motor drive; A.C. motor drives the jaw. Sprocket automatically clips aluminum profiles in coordination with chains. According to the extrusion press extruding speed, it can adjust the speed and twisting force of jaw appropriately. Thus, the accuracy of aluminum products can be attained. Return stroke uses magnetic brake. D.C. controlling system controls operating forward stroke or return stroke and pulling force. It can continue operating in coordination with extrusion press extruding recycles by working speed of 1.8 M/second to 2.2 M/second.
