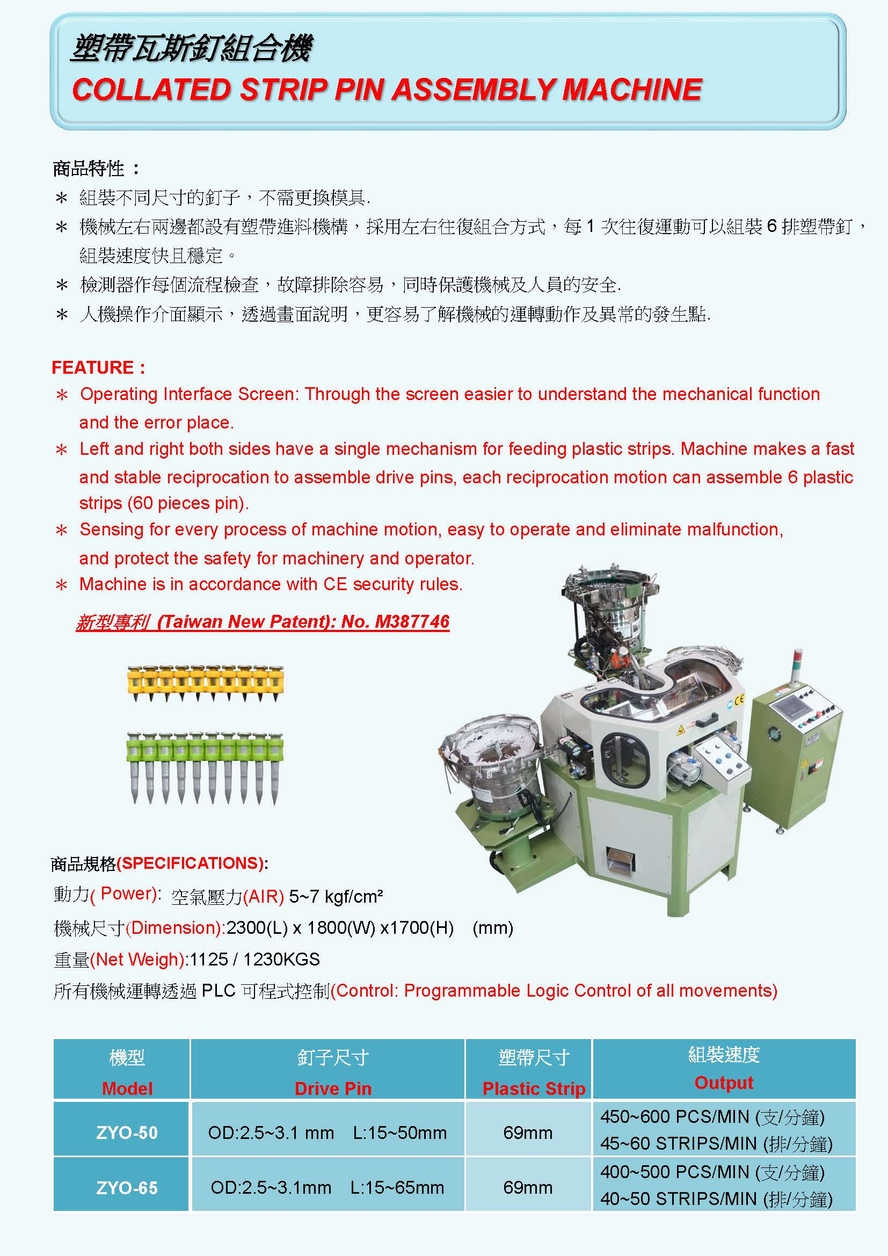

Collated Strip Pin Assembly Machine
Product ID: ZYOSend Inquiry
It could use with hopper and conveyer.
|ZYO-50||OD:2.5~3.1 mm L:15~50mm||69 mm||450~600 PCS/MIN|
|ZYO-65||OD:2.5~3.1 mm L:15~65mm||69 mm||400~500 PCS/MIN|
- Motor Power: AIR 4~5kgf/c㎡
- Dimension:1,550 (L) x 2,400 (W) x 1,400 (H) mm
- Control:Programmable Logic Control of all movement
FeaturesTaiwan New Patent No. M387746
- Operating Interface Screen: Through the screen easier to understand the mechanical function and the error place.
- Left and right both sides have a single mechanism for feeding plastic strips. Machine makes a fast and stable reciprocation to assemble drive pins, each reciprocation motion can assemble 6 plastic strips (60 pieces pin).
- Sensing for every process of machine motion, easy to operate and eliminate malfunction, and protect the safety for machinery and operator.
- Machine is in accordance with CE security rules.
