Specifications
- Low Hp, high output torque, and electricity-saving.
- Light weight, low sound level, easy to install, simple structure, low rate of malfunction and long service life.
- Built-in thermal overload protection to prevent the motor burning out.
- Switchover from motor operation to manual operation is not necessary, the manual operation can be operated without any supplement from clutch and brake upon power outage.
- Self-locking gear train prevents valve back drive.
- When electric motor is operating, manual hand-wheel won't rotate for personal safe. After manual operation, electric motor can be started without operating any machine part.
- Waterproof and weatherproof aluminum alloy enclosure, it can be mounted and run in any position.
- Starting speed is very stable and moisture in the pipeline can be expelled so that the service life of the pipe is increasing.
- Variable voltage supplied at optional choice, such as AC single-phase 110/220V, 3-phase 220V, 380V & 440V.
- Ambient temperature: -5 + 60 (Celsius). The humidity: 30% ~ 95%.
- All series of electric actuator have position indication to indicate the degree of opening.
- Packing: By Foam Packing System to protect our product.
Features
- Mechanical position indication can be installed on the actuator or inside the control room to indicate the degree of opening.
- Optional 4 ~ 20mA, 0 ~ 5V or 0 ~ 10V modulating controller.
- Standard accessories are two limit switch, which can be increased to four pieces as reguest.
- Torque switch can be installed.

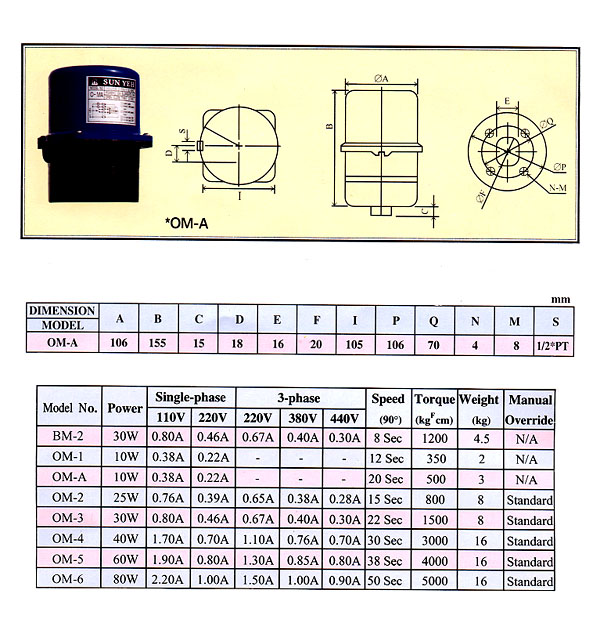

| Model No. | The model of valves | The size of valves(inch) | The material of valves | Voltage |
|---|---|---|---|---|
| OM-1 | S | 1/2 ~ 1-1/2 | SUS316/b/PVC/PP | 110 ~ 220* |
| OM-A | S | 2 | SUS316/b/PVC/PP | 110 ~ 220* |
| BM-2 | S | 2 ~ 3 | SUS316/b/PVC/PP | 110 ~ 460 |
| OM-1 | W | 1/2 ~ 1-1/2 | PVC/PP | 110 ~ 220* |
| OM-A | W | 2 | PVC/PP | 110 ~ 220* |
| BM-2 | W | 2 ~ 3 | PVC/PP | 110 ~ 460 |
| OM-1 | F | 1/2 ~ 1 | FC/SUS304/SUS316 | 110 ~ 220* |
| OM-A | F | 1-1/4 ~ 2 | FC/SUS304/SUS316 | 110 ~ 220* |
| BM-2 | F | 1-1/4 ~ 3 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-A | B | 2 ~ 3 | FC/SUS304/SUS316 | 110 ~ 220* |
| BM-2 | B | 2 ~ 4 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-1 | 3W-S | 1/2 ~ 1-1/2 | b/SUS316 | 110 ~ 220* |
| BM-2 | 3W-S | 2 | b/SUS316 | 110 ~ 460 |
| OM-1 | 3W-F | 1 | FC/SUS304/SUS316 | 110 ~ 220* |
| BM-2 | 3W-F | 1-1/2 ~ 2 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-2 | S | 1-1/4 ~ 2 | b/SUS316/PVC/PP | 110 ~ 460 |
| OM-3 | S | 2-1/2 ~ 3 | b/SUS316/PVC/PP | 110 ~ 460 |
| OM-4 | S | 4 | b/PVC/PP | 110 ~ 460 |
| OM-2 | W | 1-1/4 ~ 2 | PVC/PP | 110 ~ 460 |
| OM-3 | W | 2-1/2 ~ 3 | PVC/PP | 110 ~ 460 |
| OM-4 | W | 4 | PVC/PP | 110 ~ 460 |
| OM-2 | F | 1-1/4 ~ 2 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-3 | F | 2-1/2 ~ 3 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-4 | F | 4 ~ 5 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-5 | F | 6 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-6 | F | 8 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-2 | B | 2 ~ 3 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-3 | B | 4 ~ 5 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-4 | B | 6 ~ 8 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-5 | B | 10 ~ 12 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-6 | B | 14 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-3 | 3W-S | 2 | b/SUS316 | 110 ~ 460 |
| OM-2 | 3W-F | 1-1/2 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-3 | 3W-F | 2 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-4 | 3W-F | 2-1/2 ~ 3 | FC/SUS304/SUS316 | 110 ~ 460 |
| OM-5 | 3W-F | 4 | FC/SUS304/SUS316 | 110 ~ 460 |
