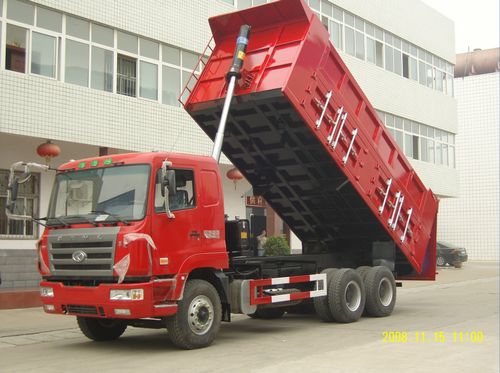

CSC3257ZM tipper are equipped with Weichai engine and ZF steering. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors and earthmoving projects.
MODEL CSC3157ZM ( 28 T )
Drive System 6X4
SIZE
Volume(m3) 15~20
Dimension(mm) 8100×2500×3370mm
Wheelbase(mm) 3600+1350
WEIGHT
G.V.W(kg) 39000
Payload(kg) 28000
Kerb (kg) 10780
Max.Traveling speed 75km/h
Min.turning diameter 17.8m
Grade ability 48%
Approach angle 19°
Departure angle 22°
Fuel consumption 30L/100km
Ground clearance 298mm
ENGINE
Engine Model WEICHAI WD 615.87
Engine Type weichai
Max Power(hp) 336
Emission(ml) 5926
TRANSSITION
Gearbox HW15710,10 forward, 2 reverse
Axle Number 3
Front Axle(kg) 9000 HF9
Rear Axle(kg) 16000 HC16
Main Ratio(rear axle) 5.73
Leaf Spring L14R13/L14R13/12
Cabin HW70 cab, four point full-floating dampers, hydraulically damped adjustable drivers seat and rigid adjustable co-drivers seat, heating and ventilation system, no sleeper
Clutch and Brake
Single—plate dry coil-spring clutch, hydraulically operated with air assistance
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering System
ZF8098,hydraulic steering with power assistance
Ratio 22.2-26.2
Electric System
Negative grounded
System voltage 24V
Batteries 24V/165Ah
TIPPER SYSTEM
Loader Material Q235B Carbon Steel(WISCO)
Cargo Size(mm) 5400×2300×1500
Side Plate Thickness(mm) 6
Bottom Plate Thickness(mm) 8
Rear Cover Open(°) 135
Feed opening 5000×1700
Tipper Lifting(°) 52
Hydraulic Pressure(Mpa) 16
Oil Cylinder Model HYVA 149 , china famous oil cylinder T-type hydraulic lifting system,100 pump,air-control valves ,reinforced T type .
MODEL CSC3157ZM ( 28 T )
Drive System 6X4
SIZE
Volume(m3) 15~20
Dimension(mm) 8100×2500×3370mm
Wheelbase(mm) 3600+1350
WEIGHT
G.V.W(kg) 39000
Payload(kg) 28000
Kerb (kg) 10780
Max.Traveling speed 75km/h
Min.turning diameter 17.8m
Grade ability 48%
Approach angle 19°
Departure angle 22°
Fuel consumption 30L/100km
Ground clearance 298mm
ENGINE
Engine Model WEICHAI WD 615.87
Engine Type weichai
Max Power(hp) 336
Emission(ml) 5926
TRANSSITION
Gearbox HW15710,10 forward, 2 reverse
Axle Number 3
Front Axle(kg) 9000 HF9
Rear Axle(kg) 16000 HC16
Main Ratio(rear axle) 5.73
Leaf Spring L14R13/L14R13/12
Cabin HW70 cab, four point full-floating dampers, hydraulically damped adjustable drivers seat and rigid adjustable co-drivers seat, heating and ventilation system, no sleeper
Clutch and Brake
Single—plate dry coil-spring clutch, hydraulically operated with air assistance
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering System
ZF8098,hydraulic steering with power assistance
Ratio 22.2-26.2
Electric System
Negative grounded
System voltage 24V
Batteries 24V/165Ah
TIPPER SYSTEM
Loader Material Q235B Carbon Steel(WISCO)
Cargo Size(mm) 5400×2300×1500
Side Plate Thickness(mm) 6
Bottom Plate Thickness(mm) 8
Rear Cover Open(°) 135
Feed opening 5000×1700
Tipper Lifting(°) 52
Hydraulic Pressure(Mpa) 16
Oil Cylinder Model HYVA 149 , china famous oil cylinder T-type hydraulic lifting system,100 pump,air-control valves ,reinforced T type .
