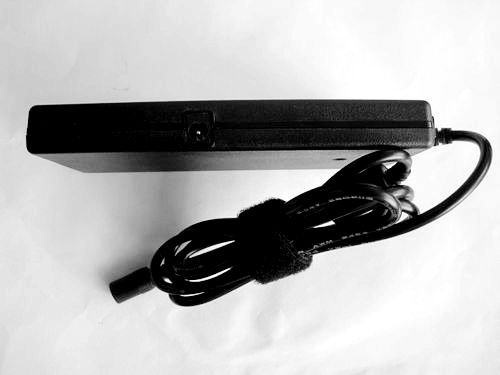

65W-Universal Lapotp Adapter 8 tips Ultra Slim
65W Universal Lapotp Adapter 8 tips Ultra Slim portable thin notebook charger
Product ID: VT-125
Send Inquiry
NEW!!! 65W ULTRA THIN TYPE universal laptop adapter
AC Input: 110~240V 1.8A 50~60Hz
DC Output: 15V-20V MAX4.7A
Connector: 8 tips
Net weight:190g
Size:128*65*18.5mm
CE,CB,Rohs complied.
Features:
1. universal laptop AC&DC adapter
2. 90W power load capacity
3. Surfaced mounting technology
4. Constant current protection
5. Constant voltage protection
6. Automatic voltage management
7. Continuous power supply control
8. 8 or 12 DC connectors fit for most laptop models
DC connectors fit to different brand laptops:
Type Output Connector Compatible for
M1 15V/Max90W 6.3*3.0mm Toshiba
M2 16V/Max90W 5.5*2.5mm IBM. Lenovo
M3 16V/Max90W 6.5*4.4mm(with1.4mm pin) Sony.Fujitsu
M4 18.5V/Max90W 4.8*1.7mm Compaq, HP
M5 19V/Max90W 5.5*2.5mm Acer,Compaq,Delta,HP,Fujitsu,Gateway,Toshiba,Liteon
M6 19V/Max90W 5.0*3.0mm(with1.0mm pin) Samsung
M7 19V/Max90W 5.5*2.1mm Acer,Compaq,Delta,HP,Fujitsu,Gateway,Toshiba,Liteon
M8 19.5V/Max90W 6.5*4.4mm(with1.4mm pin) Sony
M9 19.5V/Max90W 7.4*5.0mm Dell
AC Input: 110~240V 1.8A 50~60Hz
DC Output: 15V-20V MAX4.7A
Connector: 8 tips
Net weight:190g
Size:128*65*18.5mm
CE,CB,Rohs complied.
Features:
1. universal laptop AC&DC adapter
2. 90W power load capacity
3. Surfaced mounting technology
4. Constant current protection
5. Constant voltage protection
6. Automatic voltage management
7. Continuous power supply control
8. 8 or 12 DC connectors fit for most laptop models
DC connectors fit to different brand laptops:
Type Output Connector Compatible for
M1 15V/Max90W 6.3*3.0mm Toshiba
M2 16V/Max90W 5.5*2.5mm IBM. Lenovo
M3 16V/Max90W 6.5*4.4mm(with1.4mm pin) Sony.Fujitsu
M4 18.5V/Max90W 4.8*1.7mm Compaq, HP
M5 19V/Max90W 5.5*2.5mm Acer,Compaq,Delta,HP,Fujitsu,Gateway,Toshiba,Liteon
M6 19V/Max90W 5.0*3.0mm(with1.0mm pin) Samsung
M7 19V/Max90W 5.5*2.1mm Acer,Compaq,Delta,HP,Fujitsu,Gateway,Toshiba,Liteon
M8 19.5V/Max90W 6.5*4.4mm(with1.4mm pin) Sony
M9 19.5V/Max90W 7.4*5.0mm Dell
