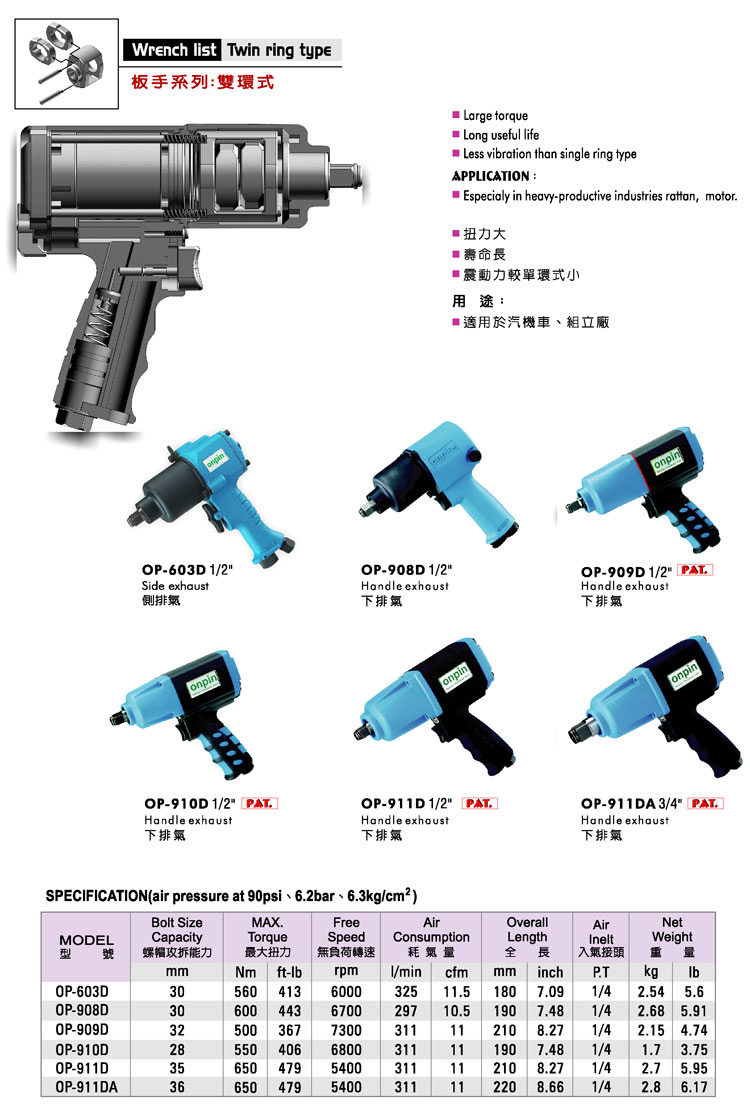

Twin Ring Type

Product ID: OP-603D, OP-908D, OP-909D, OP-910D, OP-911D, OP-911DA

Send Inquiry
(1) Large torque.
(2) Long useful life.
(3) Less vibration than single ring type.
Application:
Especialy in heavy-productive industries rattan, motor.
MODEL Bolt Size
Capacity
MAX.
Torque
MAX.
Torque
Free
Speed
Air
Consumption
Air
Consumption
Overall
Length
Overall
Length
Air
Inelt
Net
Weight
Net
Weight
mm Nm ft-lb rpm 1/min cfm mm inch P.T kg lb
OP-603D 30 560 413 6000 325 11.5 180 7.09 1/4 2.54 5.6
OP-908D 30 600 443 6700 297 10.5 190 7.48 1/4 2.68 5.91
OP-909D 32 500 367 7300 311 11 210 8.27 1/4 2.15 4.74
OP-910D 28 550 406 6800 311 11 190 7.48 1/4 1.7 3.75
OP-911D 35 650 479 5400 311 11 210 8.27 1/4 2.7 5.95
OP-911DA 36 650 479 5400 311 11 220 8.66 1/4 2.8 6.17
Specifications
  • Air pressure at 90psi, 6.2bar, 6.3kg/cm2
  • OP-603D 1/2": Side exhaust
  • OP-908D 1/2": Handle exhaust
  • OP-909D 1/2": Handle exhaust
  • OP-910D 1/2": Handle exhaust
  • OP-911D 1/2": Handle exhaust
  • OP-911DA 3/4": Handle exhaust
