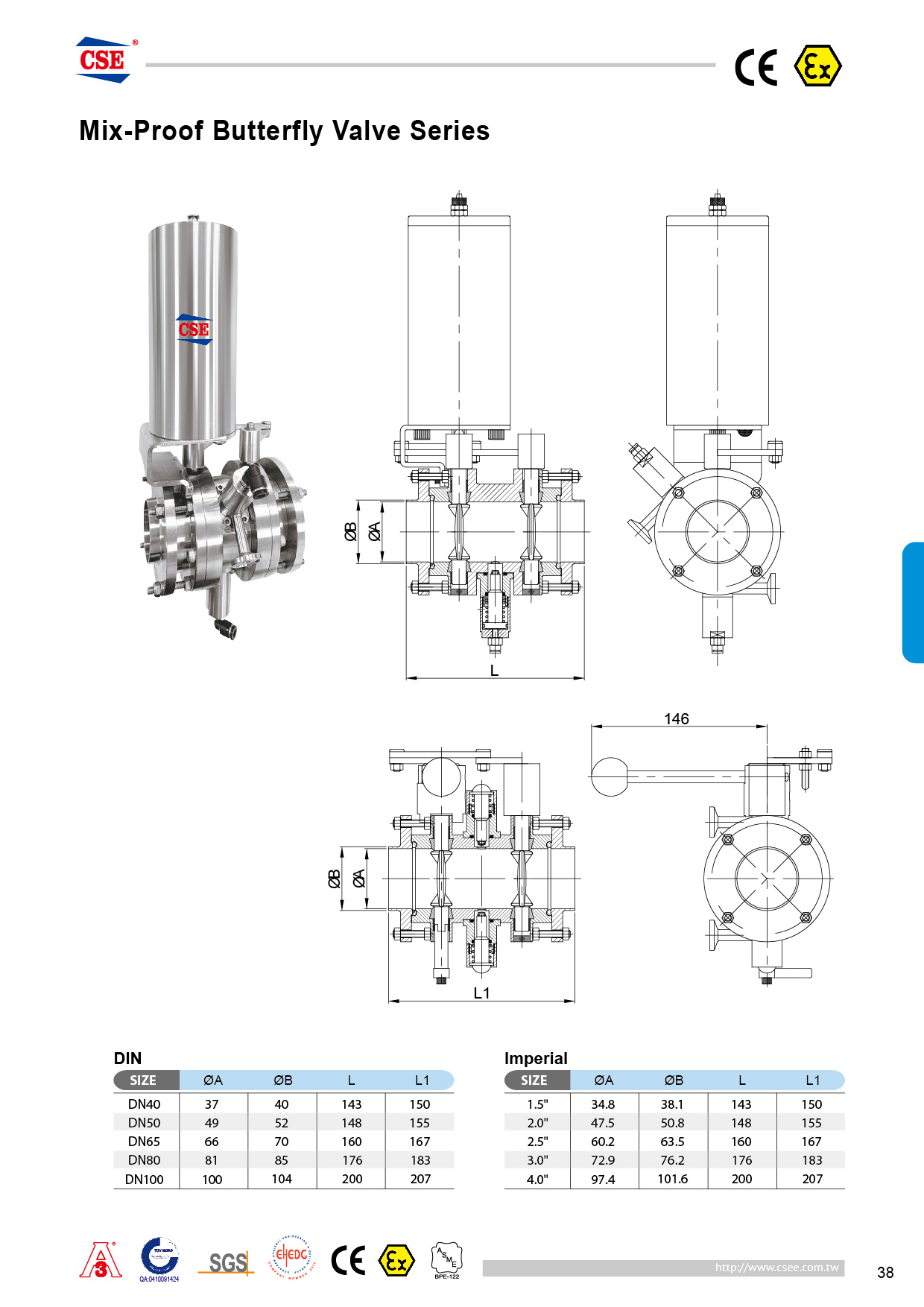

Mix-Proof Butterfly Valve Series
Click here for details.The anti-mix butterfly valve use in food and beverage line for avoiding the Gasket leakage for cause mix difference liquid.Also can use in CIP cleaning system to avoid acid and alkali liquids mix with normal liquid.Manual & Pneumatic handle control with 2 anti-mix piston easily maintain and economic Mix Valve design than Double Mix piston valve design.
Product specifications:
- Size:
- 1 ~ 4" Mix-proof butterfly valve
- Material quality:
- 304
- 316L
- Temperature:
- 0~130°c (varies according to oil seal material)
- Maximum pressure:
- 10kg/2
- Export type:
- Clip-on
- Welding
- Oil-free
- Control type:
- manual handle
- steam operated
- can be matched with control box
- Washer material:
- EPDM
- SILICON
- VITON
- Product specification:
- 3A
- DIN
- SMS
- IDF
- RJT...
- Product Features:
- Effectively separate different media in CIP or storage tank system
- Leak indication can be given to the leaking seal
- Design leak chamber for flushing connection
- Forced mechanical drive between the leakage valve and the valve plate
