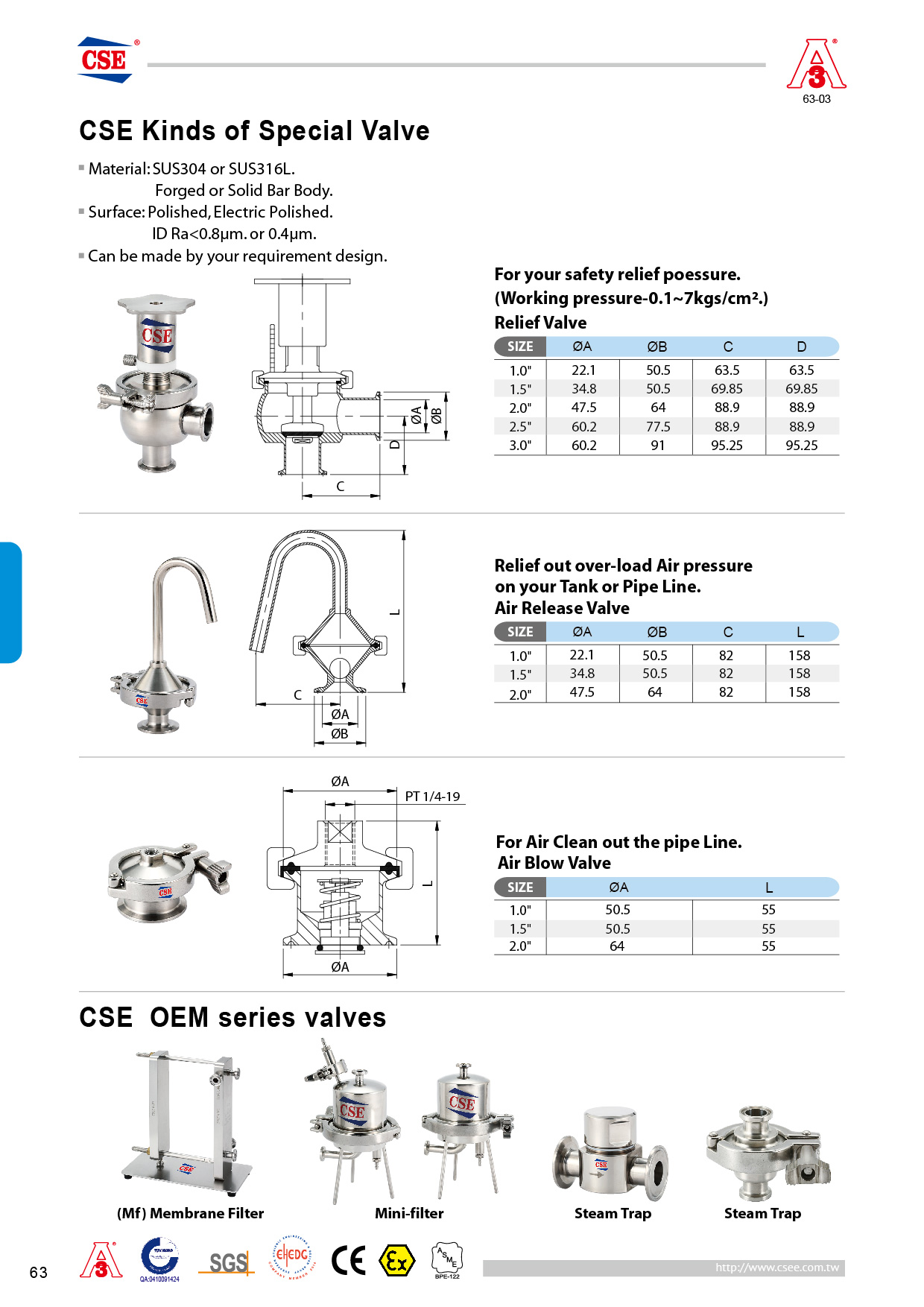

Steam trap

Product ID: P63_Steam trap

Send Inquiry

A Type- Metal Bellow Termal Steam Trap

The CSE metal Bellow thermal steam trap is automatically closed when the pipeline steam temperature circuit reaches saturation, preventing steam frozen into water through the steam trap. Easy to obtain Pure steam has been widely used in the pharmaceutical manufacturing process, and keeps max pure steam in the pipeline to save heat waste.

All parts are made of stainless steel, complete design can be horizontal & vertical inlet and outlet assembly, precision operation suitable for pure steam SIP/ CIP process is widely used in biopharmaceutical, aseptic, food and beverage applications.

  • Connection end:
    • Clamp ends/ Weld ends...etc.
  • Surface finished:
    • Polished
    • Electro polished
  • Size:
    • 1/2”-2”
  • Middle connection:
    • Clamp design for easy clean and repair.

B type- Thermodynamic Steam Traps

B "The CSE metal thermal steam trap is automatically closed when the pipeline steam temperature circuit reaches saturation, Preventing steam from freezing into water through the steam trap . Pure steam has been used in the pharmaceutical manufacturing process, and keeps max pure steam in the pipeline to save heat waste.

All parts are made of stainless steel, complete design, easy horizontal inlet and outlet assembly, low cost and easy to maintain, suitable for pure steam SIP /CIP process width use for biopharmaceutical and aseptic food and beverage applications. The thermal steam trap discharges condensate close to the saturation temperature.

  • CSE can be offer kinds of the steam traps, the common characteristics of steam traps as following points:
    • Drain the condensate from the pipe
    • Collect steam
    • Exhaust air and gas
  • Connect:
    • Clamp /Weld ...etc.
  • Surface:
    • Polish. Or Electric polish.
  • Size:
    • 1/2”-2”.
  • Traps are widely used in industries where condensate must be quickly removed.
