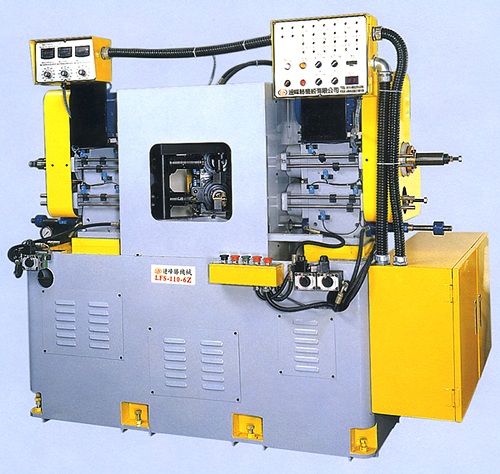

6 Spindle Lift Type Reaming & Tapping Machine

Product ID: LFS-110-6Z

Send Inquiry
Specifications
  • Electric system PLC.
  • Hydraulic pump motor: 3HP x 4P double pump = 1set, 2HP x 4P single pump = 1set
  • Cutting fluid setting: Water pump motor 1/4HP, tank capacity 200 liter
  • Total horse power: 29HP
  • Machine size: 1,500(L) x 2,300(W) x 2,200(H)mm
  • Total weight: 3,500KG
Features
  • 1st ~ 3rd spindle reaming motor: 5HP x 4P
  • 4th ~ 6th spindle tapping motor: 3HP x 6P
  • Motor horse power for the work piece size to do change.
  • Tap spindle motor can to choose brake or assembly frequency converter.
  • Spindle outside diameter Ø110, stroke 140mm.
  • The can finish Tee, Bend, Nipple, Ball valve and Gate valve body and so forth.

Main Products

6 Spindle Life Type Reaming & Tapping Machine, 2 Spindle Slide Type Reaming & Tapping Machine, 6 Spindle Rotary Table Type Drilling Reaming & Tapping Machine, 7 Spindle Rotary Table Type Drilling Reaming & Tapping Machine
