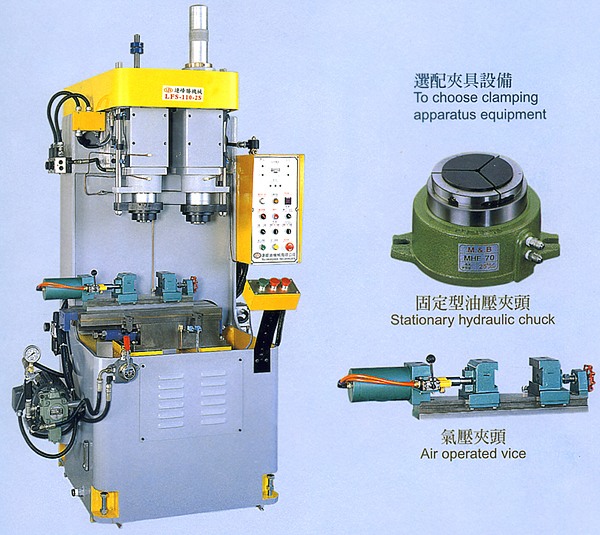

2 Spindle Slide Type Reaming & Tapping Machine

Product ID: LFS-110-2S

Send Inquiry
Specifications
  • Electric system PLC.
  • Hydraulic pump motor: 2HP x 4P single pump = 1set
  • Cutting fluid setting: Water pump motor 1/8HP, tank capacity 130 liter
  • Total horse power: 8HP
  • Machine size: 1,000(L) x 1,300(W) x 2,100(H)mm
  • Total weight: 1,500KG
Features
  • 1st spindle reaming, motor: 3HP x 6P
  • 2rd spindle tapping, motor: 3HP x 6P
  • Motor horse power for the work piece size to do change.
  • Tap spindle motor can to choose brake or assembly frequency converter.
  • Spindle outside diameter Ø110, stroke 140mm.
