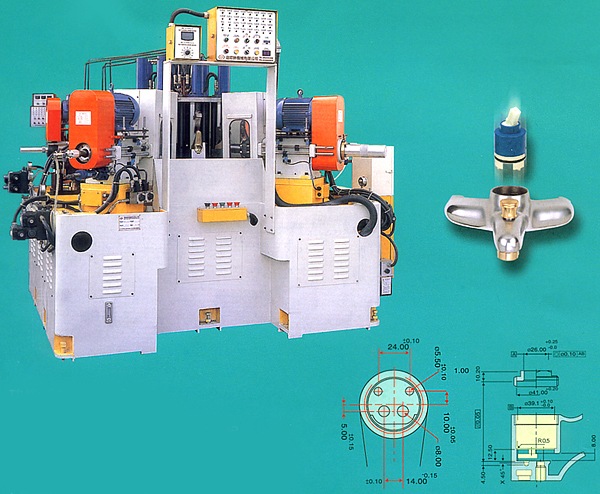

7 Spindle Rotary Table Type Drilling Reaming & Tapping Machine

Product ID: LFS-110-7R

Send Inquiry
Specifications
  • Electric system PLC.
  • Hydraulic pump motor: 3HP x 4P double pump = 1set, 2HP x 4P double pump = 2set, single pump = 1set
  • Cutting slide set: Water pump motor 1HP x 2P, tank capacity 200 liter
  • Total horse power: 26HP
  • Machine size: 2,300(L) x 2,900(W) x 2,200(H)mm
  • Total weight: 6,000KG
Features
  • 1st spindle rough reaming motor: 5HP x 4P
  • 2nd ~ 5th spindle drilling motor: 1HP x 4P
  • 6th spindle finish reaming motor: 5HP x 4P
  • 7th spindle tapping motor: 3HP x 4P
  • 2nd ~ 5th spindle assembly two way adjuster, adjustable up down left right 20mm.
  • 7th spindle assembly frequency converter, adjustable spindle r.p.m.
