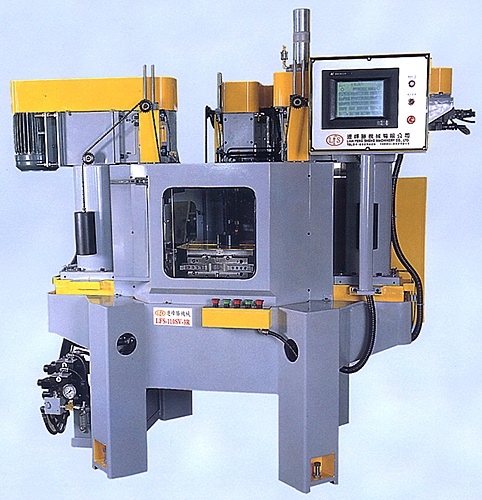

3 Spindle Rotary Table Type Servo-Motor Reaming & Tapping Machine

Product ID: LFS-110SV-3R

Send Inquiry
Specifications
  • Electric system PLC.
  • Hydraulic pump motor: 2HP x 4P single pump = 1set
  • Cutting fluid setting: water pump motor 1/4HP
  • Total horse power: 14HP
  • Machine size: L1,700 x W2,100 x H2,200 (mm)
  • Total weight: 3,000KG
Features
  • 1st spindle rough reaming motor: 3HP x 6P
  • 2nd spindle finish reaming motor: 3HP x 6P
  • 3rd spindle tapping servo-motor: 2kw
  • Motor horse power for the work piece size to do change.
  • Spindle outside diameter Ø110, Max stroke 150mm.
  • This machine all spindle, altogether servo-motor & ball screw.
