Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Application
Optical Signal Switching and Routing
Optical Network Protection and Restoration
Optical Network Monitoring
Video Distribution
Instrumentation Resource Sharing
Military Communications
Specification

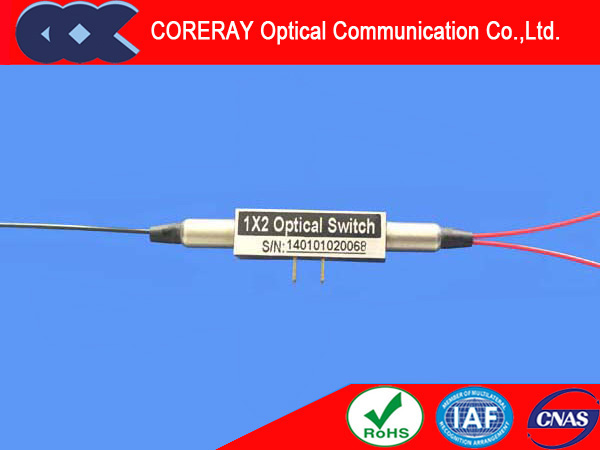

Parameters SOSW-1×2
Wavelength Range nm 1295~1325,1520~1580
Testing Wavelength nm 1310/1550
Insertion Loss dB Typ:0.7 ,Max:1.0
Return Loss dB ≥50
Channel Cross Talk dB ≥45
PDL dB ≤0.10
Polarization Mode Dispersion ps ≤0.20
TDL dB ≤0.25
Power Handling mW 300
Switching Speed ms 50~200
Repeatability dB 2K
Operating Temperature °C -40~+85
Storage Temperature °C -40~+85
Dimensions mm (L)58.2×(W)8.4×(H)8.4(±0.2)
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Application
Optical Signal Switching and Routing
Optical Network Protection and Restoration
Optical Network Monitoring
Video Distribution
Instrumentation Resource Sharing
Military Communications
Specification
Parameters SOSW-1×2
Wavelength Range nm 1295~1325,1520~1580
Testing Wavelength nm 1310/1550
Insertion Loss dB Typ:0.7 ,Max:1.0
Return Loss dB ≥50
Channel Cross Talk dB ≥45
PDL dB ≤0.10
Polarization Mode Dispersion ps ≤0.20
TDL dB ≤0.25
Power Handling mW 300
Switching Speed ms 50~200
Repeatability dB 2K
Operating Temperature °C -40~+85
Storage Temperature °C -40~+85
Dimensions mm (L)58.2×(W)8.4×(H)8.4(±0.2)
Certificate
- RoHS IAF CNAS
