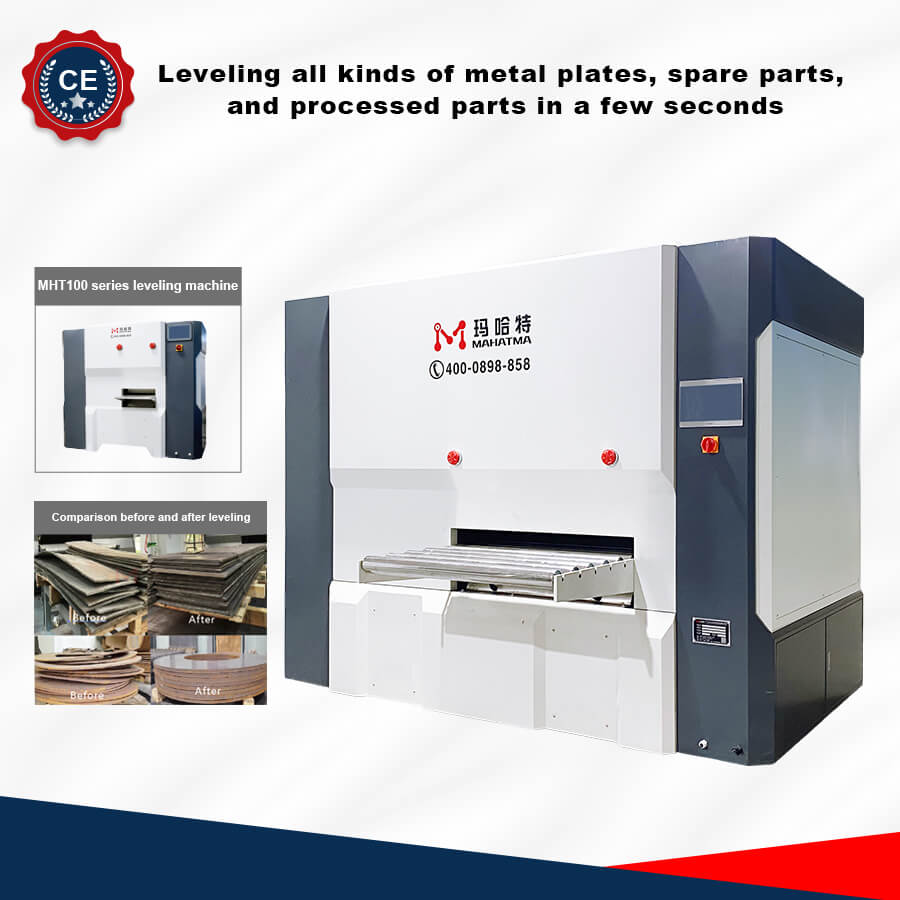

Metal Straightening Machine and Leveling machine
Metal Straightening Machine and Leveling machine For thick metal sheet
Product ID: MHT100-800-19
Send Inquiry
MHT100 Series sheet metal CNC precision leveler parameter table
Machine Model: MHT100-600-19 MHT100-800-19 MHT100-1000-19 MHT100-1300-19 MHT100-1600-19 MHT100-2100-19
Roller Diameter: φ100mm
Roller Number: 19
Nominal Leveled Width: 600mm 800mm 1000mm 1300mm 1600mm 2100mm
Rated Plate Thickness: (Q235)3~12mm
Max, Plate Thickness(Q235): 14mm
Shortest Workpiece: 165mm
Applicable Object: Coil, plane parts, sheet materials, etc
Function of Leveling machine
Under the condition of large elastic-plstic bending, no mater how different the original bending degree, the CNC precision leveling machine uses the "Bauschinger effect" of the material to bend the plate repeatedly, gradually reduce the bending deflection, and gradually change the origina curvature into a single curvature, and finally level it to achieve the leveling accuracy required by the process.
Machine Model: MHT100-600-19 MHT100-800-19 MHT100-1000-19 MHT100-1300-19 MHT100-1600-19 MHT100-2100-19
Roller Diameter: φ100mm
Roller Number: 19
Nominal Leveled Width: 600mm 800mm 1000mm 1300mm 1600mm 2100mm
Rated Plate Thickness: (Q235)3~12mm
Max, Plate Thickness(Q235): 14mm
Shortest Workpiece: 165mm
Applicable Object: Coil, plane parts, sheet materials, etc
Function of Leveling machine
Under the condition of large elastic-plstic bending, no mater how different the original bending degree, the CNC precision leveling machine uses the "Bauschinger effect" of the material to bend the plate repeatedly, gradually reduce the bending deflection, and gradually change the origina curvature into a single curvature, and finally level it to achieve the leveling accuracy required by the process.
