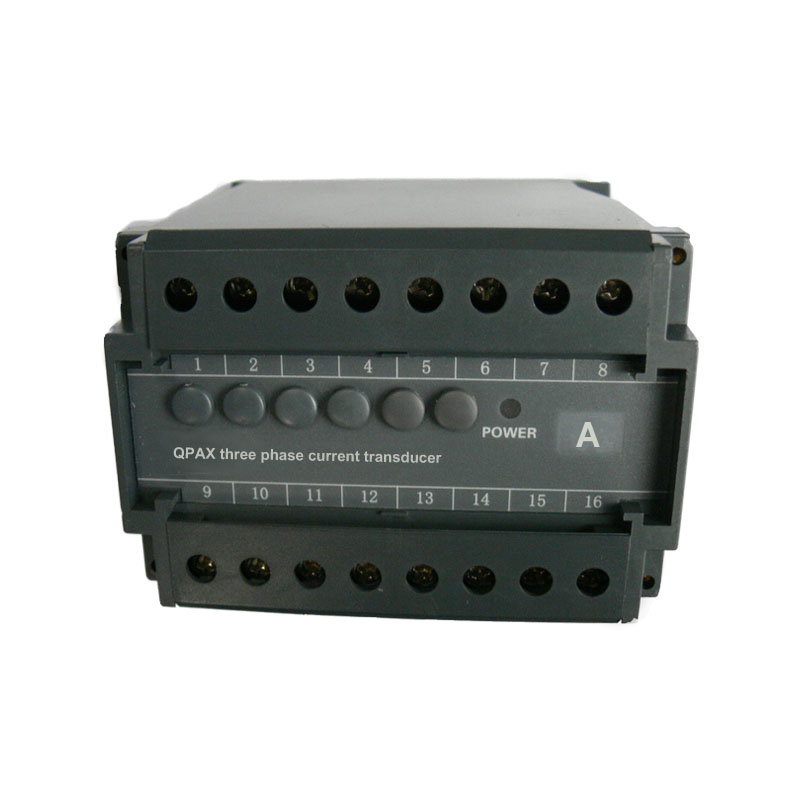

QP-X series AC power transducer converts three phase ac signals into a load independent dc signal proportional to voltage(V), current(A), active power (watt) and reactive power (var) Frequency(Hz) etc. Three output signals combination in one transducer.
The current and voltage signals are passed into the circuit via precision instrument transformers to provide galvanic isolation between the input circuits and the transducer circuitry. Each pair of current and voltage signals is mathematically multiplied together to produce a product signal proportional to
true power and independent of wave shape and phase angle.
The current and voltage signals are passed into the circuit via precision instrument transformers to provide galvanic isolation between the input circuits and the transducer circuitry. Each pair of current and voltage signals is mathematically multiplied together to produce a product signal proportional to
true power and independent of wave shape and phase angle.
