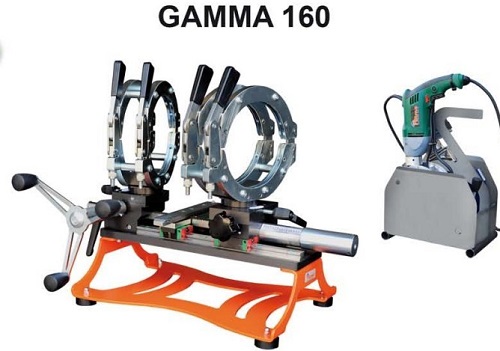

GAMMA 160 is a manual butt welding machine for HDPE and PP pipes up to Ø160mm(4IPS).
Feature :
1.special jaws for manufacturing elbows. It can be weld moulded fittings like bens ,tees,wyes(Y) and flange.
2.necks up to Ø160mm, short flange necks can be welded with the help of a stub end holder(on request), applied to the clamps.
Machine body of GAMMA 160 is compact and easy to transport .Avalaible in the 230V vers
Supplied with:
Heating plate
Milling cutter
Clamps
Support
Wooden case
On request:
Tool for flange necks.
Technical feature :
Model Gamma 160
Welding range (mm) 40-160MM
Outside temperature -5-40℃
Working temperature 180-280℃
Working voltage 220v, 50/60hz
Heating plate rated power 800W
Milling cutter reated power 800W
Related Power 1600W
Material PE,PP,PB,PVDF
Clamps adapters ¢40、50、63、75、90、110、125、140mm
Feature :
1.special jaws for manufacturing elbows. It can be weld moulded fittings like bens ,tees,wyes(Y) and flange.
2.necks up to Ø160mm, short flange necks can be welded with the help of a stub end holder(on request), applied to the clamps.
Machine body of GAMMA 160 is compact and easy to transport .Avalaible in the 230V vers
Supplied with:
Heating plate
Milling cutter
Clamps
Support
Wooden case
On request:
Tool for flange necks.
Technical feature :
Model Gamma 160
Welding range (mm) 40-160MM
Outside temperature -5-40℃
Working temperature 180-280℃
Working voltage 220v, 50/60hz
Heating plate rated power 800W
Milling cutter reated power 800W
Related Power 1600W
Material PE,PP,PB,PVDF
Clamps adapters ¢40、50、63、75、90、110、125、140mm
