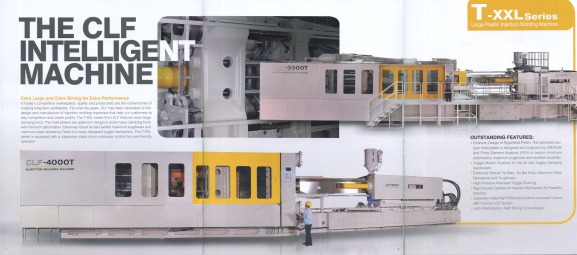

CLF-4000T
Screw Diameter 230mm
Theoretical Inj. Volume 55050cm3
Max. Injection Pressure 1703kg/cm2
Max. Injection Speed 2782cm3/sec
Max. Shot Weight(PS) 50095gram
Screw Rotation Speed 73rpm
Nozzle Radius 15mm
Heating Zone 15zones
Heating capacity 202kw
Distance between Tie Bars 2400*2100mm
Dimension of Platen 3600*3300mm
Mold Height 1000-2150mm
Mold Opening stroke 2600mm
Clamping Force 4000Tons
Dia. of locating Ring 250mm
Ejector Stroke 500mm
Ejecting Force 75Tons
Capacity of Oil Reservoir 7500liters
Machine Dimension 24*5*4.6m
Net Weight 380Tons
1.Optimum design of rigid mold platen. The optimized box-type mold platen is designed and analyzed by CAD/CAE and Finite Elemen
Theoretical Inj. Volume 55050cm3
Max. Injection Pressure 1703kg/cm2
Max. Injection Speed 2782cm3/sec
Max. Shot Weight(PS) 50095gram
Screw Rotation Speed 73rpm
Nozzle Radius 15mm
Heating Zone 15zones
Heating capacity 202kw
Distance between Tie Bars 2400*2100mm
Dimension of Platen 3600*3300mm
Mold Height 1000-2150mm
Mold Opening stroke 2600mm
Clamping Force 4000Tons
Dia. of locating Ring 250mm
Ejector Stroke 500mm
Ejecting Force 75Tons
Capacity of Oil Reservoir 7500liters
Machine Dimension 24*5*4.6m
Net Weight 380Tons
1.Optimum design of rigid mold platen. The optimized box-type mold platen is designed and analyzed by CAD/CAE and Finite Elemen
