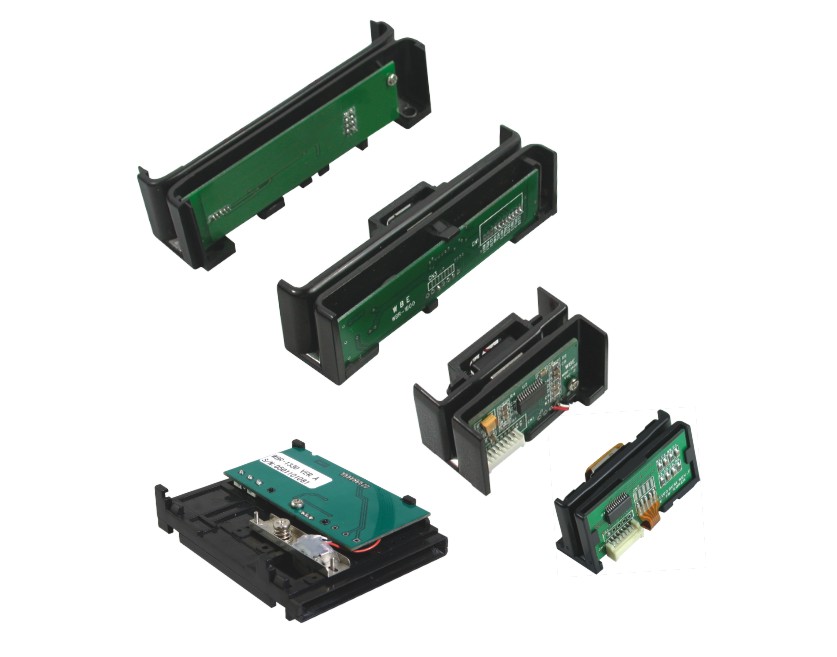

Magnetic card reader/writer

Product ID: WBT-2000 series

Send Inquiry
Hi-Co/Low-Co magnetic card reader/writer, with IC card reader/writer function
Specifications
  • Specifications^$Card Standard: ISO 7811 / 2 ISO 7816
  • Track Position: ISO 1 (IATA) ISO 2 (ABA) ISO 3 (MINTS)
  • Recording Density: 210 BPI 75 BPI 210 BPI
  • Recording Capacity: 79Characters(7bits) 40Characters(5bits) 107Characters(5bits)
  • Power Supply: +5V DC ?%
  • Power consumption: 200mA ?5%(read) 280mA ?5%(write)
  • Head Function: Read only 1.5mm, Writer 3 mm
  • Card Thickness: Plastic 0.76 0.08mm
  • Operation Speed: 10 ~ 150cm/sec(read) 10 ~ 100cm/sec(write)
  • Error Rate: Lass than 0.5% (JSE Test card)
  • Interface: RS232C, USB
  • Operation Locus: Indoors only
  • Lifetime of Header: 500,000 card passes (1 pass : one swipe)
  • Lifetime of IC: 300,000 card passes
  • Lifetime of SAM: 600,000 card passes
  • Weight Approx.: 190g ^#
  • Features
  • Features^$Support ISO, IBM, DIN, ANSI etc
  • Smart reading for card / bankbook with different magnetic record format
  • Compatible with magnetic card, IC card and SAM card
  • Excellent adaptation, good reliability, long-life magnetic head
  • RS232/USB
  • Hi co/low co ^#
