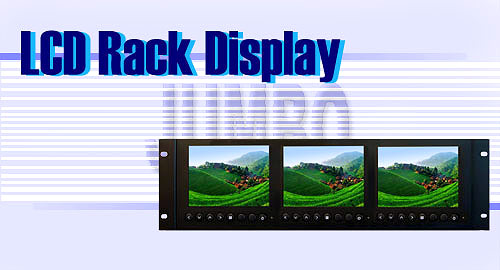

LCD Rack Monitor

LCD Rack Monitor

Click here for details.

LCD Rack Monitor

Product ID: JB-D3U56

Send Inquiry
Specifications
  • LCD type: 5.6" TFT active matrix panel X 3 screens.
  • Output video system
    • 1Vp-p @ 75ohm (auto switch).
    • NTSC: fH: 15.75Khz fV: 60Hz.
    • PAL: fH: 15.625Khz fV: 50Hz.
  • Pixel pitch: 0.118 (W) x 0.362 (H) mm.
  • Brightness: 450 cd/m2.
  • Contrast ratio: 250:1, 35 m/sec.
  • Viewing angle: 50 / 50 / 30 / 50 (L / R / T / B).
  • Resolution: 480 (W) x 234 (H).
  • Input (per screen)
    • 1 x mini dim: S-video.
    • 1 x audio: Audio input.
    • 2 x BNC: Analog input.
  • Output (per screen)
    • 1 x BNC: Analog output.
    • 1 x audio: Audio output.
  • Power adapter: AC 100 ~ 240V, 50/60Hz.
  • Power consumption (approx.): 20W (max.).
  • Temperature
    • Operation: 0°C ~ +60°C.
    • Storage: -10°C ~ +70°C.
  • Dimension: 480 x 132 x 44 mm (3U).
  • Gross weight: 3.5kg (approx.).
Certificate
  • CE / FCC / RoHS / EMS
