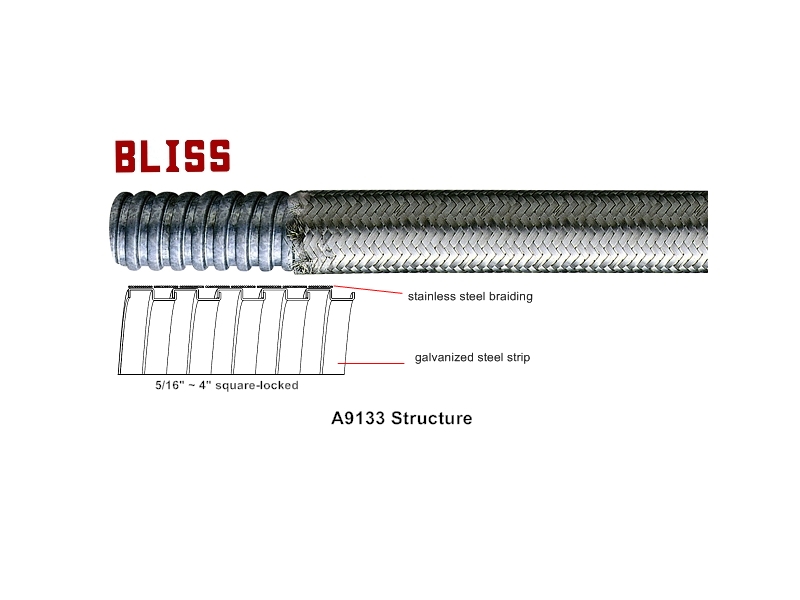

Flexible braiding conduit A9133 structure and cross-section
Click here for details.Flexible braiding conduit A9133 offers enhanced safety to your wire management systems. The sophisticated outer wire braiding can prevent wires from spark, welding slag, hot swarf and abrasion, suitable for heavy industry such as steel plant and and petrochemical plant.
Features
- Type A2012 (galvanized steel core) with #304 stainless steel braiding.
- Good flexibility
- Not liquid-tight
- IP50
- RoHS & REACH compliant
- Enhanced Safety, prevents spark, welding slag, hot swarf and abrasion.
- Braiding can be applied to all BLISS products, by request.
- Liquid-tight type A9333 and A9533 are available.
- Hazardous area
- Class 3 Division 1, Class 3 Division 2
- Machine tools, motor lead connections
Catalog number | Trade size (inch) |
Inner diameter min. (mm) |
Inner diameter max. (mm) |
Outside diameter min. (mm) |
Outside diameter max. (mm) |
Min bending radius (mm) |
Packing length (m) |
---|---|---|---|---|---|---|---|
A91330200 | 5/16" | 10.3 | 10.8 | 14.3 | 14.8 | 30 | 50 |
A91330300 | 3/8" | 12.3 | 12.8 | 16.6 | 17.2 | 35 | 50 |
A91330400 | 1/2" | 15.8 | 16.3 | 20.0 | 20.7 | 40 | 50 |
A91330600 | 3/4" | 20.8 | 21.3 | 25.4 | 26.1 | 50 | 50 |
A91331000 | 1" | 26.4 | 27.0 | 31.6 | 32.2 | 75 | 30 |
A91331200 | 1-1/4" | 34.7 | 35.4 | 40.5 | 41.2 | 85 | 25 |
A91331400 | 1-1/2" | 40.1 | 40.7 | 46.4 | 47.0 | 110 | 20 |
A91332000 | 2" | 51.3 | 51.9 | 57.6 | 58.2 | 125 | 15 |
A91332400 | 2-1/2" | 63.0 | 63.6 | 72.2 | 72.8 | 145 | 10 |
A91333000 | 3" | 78.0 | 78.7 | 87.2 | 87.9 | 180 | 10 |
A91334000 | 4" | 101.6 | 102.6 | 110.5 | 111.5 | 230 | 5 |
