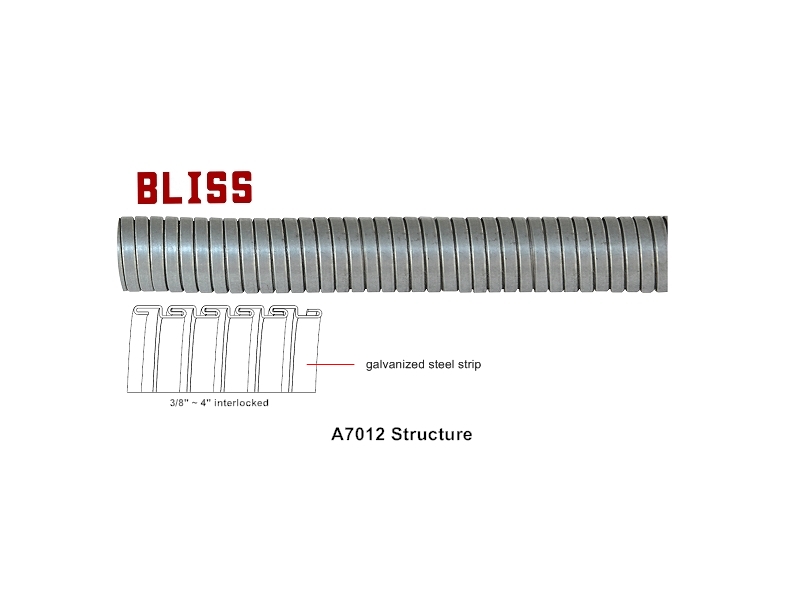

Flexible metal conduit A7012 structure and cross-section

Flexible metal conduit A7012 structure and cross-section

Click here for details.

Flexible Metal Conduit (Interlocked)

Product ID: A7012

Send Inquiry

★Flexible metal conduit (inter-locked) is used for the protection of electric wire/cable and other related products. It also can solve the problem of construction of angle that the rigid pipes (such as steel pipes and PVC pipe) can not overcome and then becomes easily in the installation and operation of wires/pipes, as well as liquid-tight, flame retardant, vibration-proof, anti-interference, etc.

★Flexible metal conduit (inter-locked) applicable to indoor working  place where temperature is high.

★ More reference information, please see "Appendix".



Features
  • Galvanized steel core, non liquid-tight.
  • Interlocked.
  • Good tensile property.
  • Flat and smooth internal surface for better cable installation.
  • For large machinery or automatic machine which requires heavy bearing and tensile property.
  • For transportation facility and heavy industry.
  • Stainless steel core type A7013 (SUS #304). #316 stainless steel core is available by request.
  • RoHS & REACH compliant.
  • IP50
Catalog number Trade size
(inch)
nner diameter min.
(mm)
Inner diameter max.
(mm)
Outside diameter min.
(mm)
Outside diameter max.
(mm)
Min bending Packing length
(m)
A70120300 3/8" 12.3 12.8 15.3 15.8 55 30
A70120400 1/2" 15.8 16.3 18.8 19.3 85 30
A70120600 3/4" 20.8 21.3 23.8 24.3 110 30
A70121000 1" 26.4 27.1 29.4 30.1 150 30
A70121200 1-1/4" 35.1 35.8 39.5 40.2 175 15
A70121400 1-1/2" 40.1 40.8 44.5 45.2 190 15
A70122000 2" 51.3 52.0 55.7 56.4 240 15
A70122400 2-1/2" 63.0 63.7 67.4 68.1 310 10
A70123000 3" 78.0 78.7 83.0 83.7 380 10
A70124000 4" 101.6 102.6 106.6 107.6 490 5
