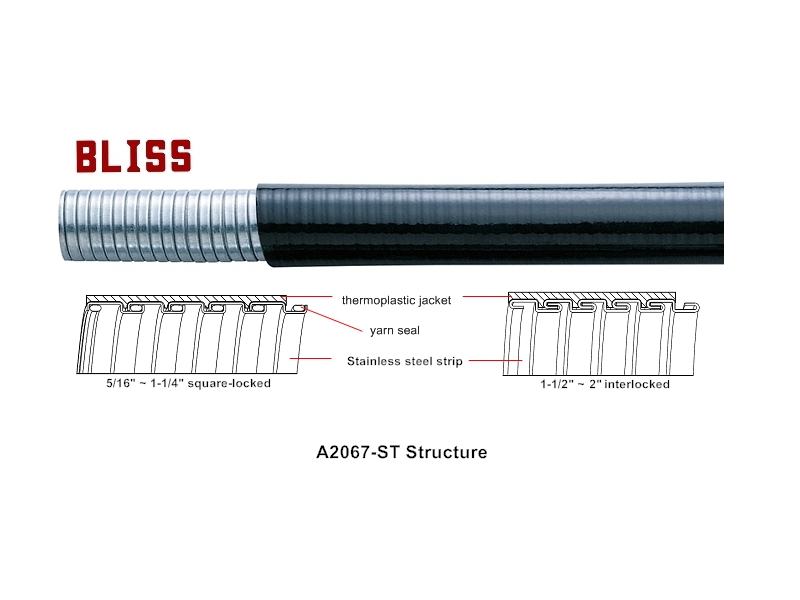

Liquid-tight flexible conduit A2067-ST structure & cros
Click here for details.★ Flexible metal conduits can be a wide scope of application, all lamps, communications, control, air conditions, electrical room, the fire alarm system, and so on. When we consider the working space, safety, construction facilities, vibration-proof, anti-interference, the integrity of wiring construction and pipeline construction, the use of flexible conduit can solve the problem of pipe construction.
★ More reference information, please see "Appendix".
Features
- Stainless steel SS#304 core with PVC jacketed. PVC jacket conforms with UL 360 that is flame retardant, oil and sunlight resistant.
- High flexibility and liquid-tight.
- Movement & vibration absorbing ability, and indefinitely bending ability.
- Best performance with the installation of automatic machinery, sophisticated devices and facilities.
- Cord packing sizes from 3/8〞 through 1-1/4〞 by square-locked.
- Temperature rating: -20°C ~ +70°C.
- Also can be covered by the plastic material met LSHF (low smoke halogen free), please contact us for more details.
- Standard color: Black.
- Meet RoHS & REACH.
- IP67
Catalog number | Trade size (inch) |
Inner diameter min. (mm) |
Inner diameter max. (mm) |
Outside diameter min. (mm) |
Outside diameter max. (mm) |
Min. bending radius (mm) |
Packing length (m) |
---|---|---|---|---|---|---|---|
A206702ST | 5/16" | 9.5 | 10.0 | 14.5 | 15.0 | 50 | 50 |
A206703ST | 3/8" | 12.3 | 12.8 | 17.5 | 18.0 | 60 | 50 |
A206704ST | 1/2" | 15.8 | 16.3 | 20.8 | 21.3 | 80 | 50 |
A206706ST | 3/4" | 20.7 | 21.2 | 26.2 | 26.7 | 100 | 30 |
A206710ST | 1" | 26.2 | 26.8 | 32.7 | 33.4 | 150 | 20 |
A206712ST | 1-1/4" | 34.8 | 35.4 | 41.4 | 42.2 | 180 | 15 |
A206714ST | 1-1/2" | 40.1 | 40.6 | 47.4 | 48.3 | 200 | 15 |
A206720ST | 2" | 51.3 | 51.9 | 59.4 | 60.3 | 250 | 10 |
