DVR

Product ID: G-7016

Send Inquiry

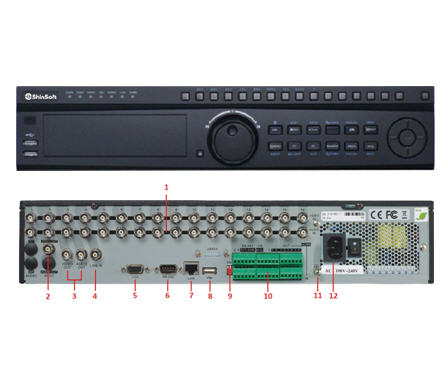

Interfaces Descriptions
.VIDEO IN / AUDIO IN
.VIDEO SPOT OUT
.VIDEO OUT / AUDIO OUT
.LINE IN
.VGA
.RS232
.LAN Interface
.USB Interface
.Termination Switch
.RS-485 Interface / Controller port / ALARM IN /LARM OUT
.GROUND
.POWER
Model - G-7016
Video/Audio input Video compression H.264
Video input 16-ch, BNC(1.0Vp-p, 75Ω), PAL/NTSC adaptive
Audio compression OggVorbis
Audio input 16-ch, BNC(2.0Vp-p, 1kΩ)
Voice talk input 1-ch, BNC(2Vp-p, 1kΩ)
Video/Audio output Preview resolution PAL: 704×576 NTSC: 704×480
VGA output Resolution: 1024×768/60Hz
Encoding resolution 4CIF/2CIF/CIF/QCIF
Video output 2-ch, BNC(1.0Vp-p, 75Ω)
Frame rate 4CIF: 6fps; 2CIF: 12fps; CIF:25(P)/30(N)fps Or:4CIF@25fps(P)/30fps(N) for 1st and 2nd cameras; CIF@25fps(P)/30fps(N) for the rest cameras
Video bit rate 32Kbps~3Mbps, or user-defined
Audio output 1-ch, BNC(Linear, 600Ω)
Audio bit rate 16kbps
Dual stream Support
Stream type Video/Video & Audio
Synchronous playback 16-ch
Hard disk Type 8 SATA Interfaces
Capacity Each supports up to 2TB capacity
External interfaces Network interface 1, RJ45 10M/100M adaptive Ethernet interface
Serial interfaces 1 RS-232 interface (for parameters configuration, maintenance, transparent channel); 1 RS-485 interface (for PTZ control); 1 RS-485 keyboard interface (for special keyboard control)
USB interface 3, USB2.0
Alarm in 16
Alarm out 4
Others Power supply 100~240VAC, 6.3A, 50~60Hz
Consumption ≤50W(without hard disk or DVD-R/W)
Working temperature -10℃~+55℃(14°F~131°F)
Working humidity 10%~90%
Chassis 19” standard chassis
Size(mm) 95mm(H)×450mm(W)×450mm(D) (3.74"(H)×17.72"(W)×17.72"(D))
Weight ≤8Kg(without hard disk or DVD-R/W) (17.64lbs)
Features
  • User-friendly menu and easy to operate
  • VGA output resolution supports up to 1024×768
  • Support preview, backup and playback high definition image
  • Support digital zoom when preview and playback
  • Support digital zoom by using mouse when in PTZ control mode
  • Different channels can be set different recording expired time
  • Support normal and event video encoding parameters
  • Support redundant recording
  • Support hard disk group management
  • Support NTP (Search Activated Device Protocol)
