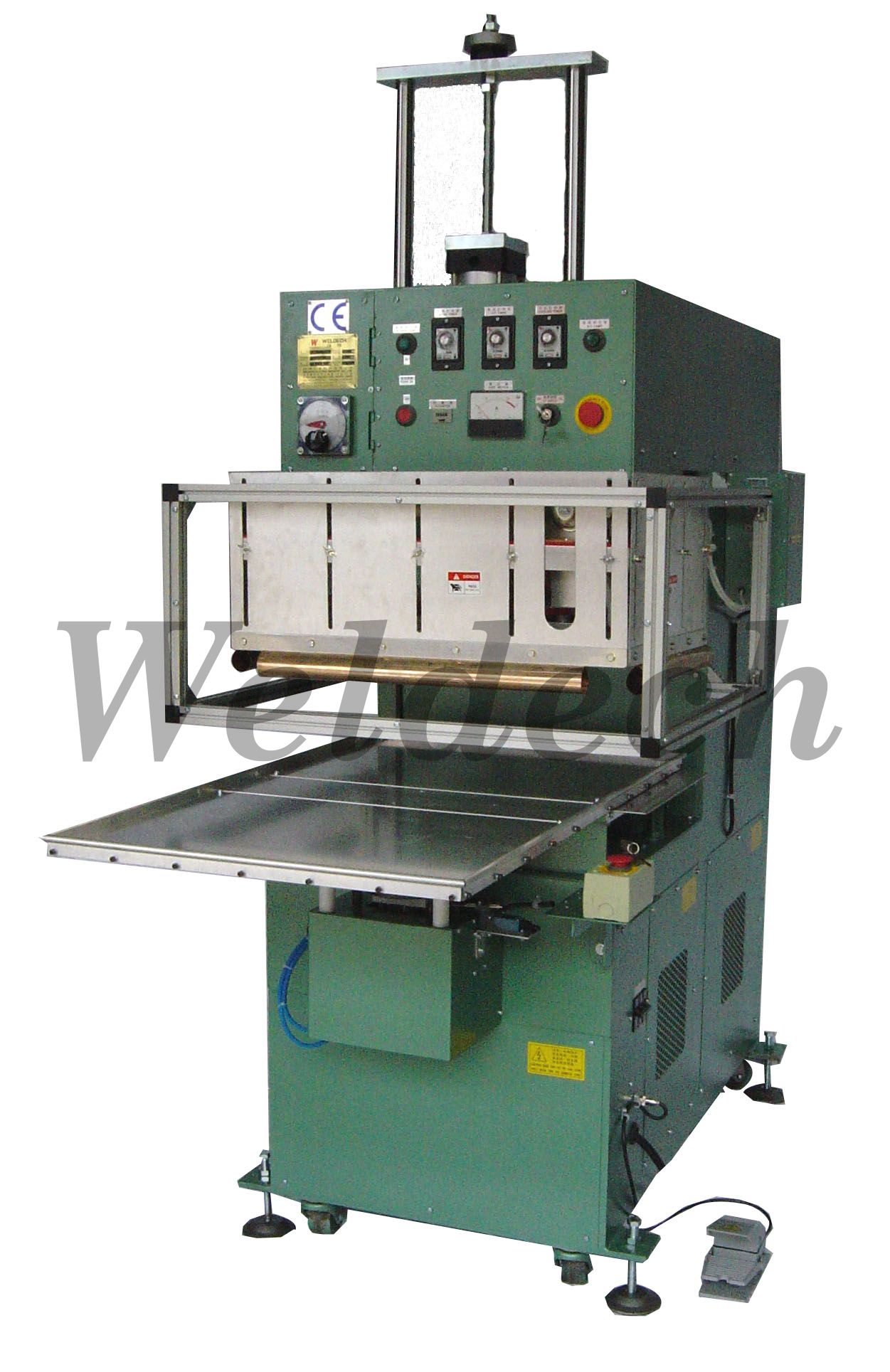

[CE] High Frequency Blister Packing Machine

Product ID: PW-601CMTR+H, PW-801CMTR+H, PW-1001CMTR+H, PW-401CMTR+H, PW-501CMTR+H

Send Inquiry
  • APPLICATIONS
    • Sealing for PVC or PET-G blister.
Model PW-401CMTR+H  PW-501CMTR+H PW-601CMTR+H PW-801CMTR+H PW-1001CMTR+H
H.F. Out-put Power  4KW  5KW 6 KW 8 KW 10 KW
Oscillation Frequency  27.12 MHZ  27.12 MHZ 27.12 MHZ 27.12 MHZ 27.12MHZ
Power Supply  AC220/380/400
/415/440V 3Phase, voltage to be arranged at instruction
 AC220/380/400
/415/440V 3phase, voltage to be arranged at instruction
AC220/380/400
/415/440V 3Dia. Voltage to be arranged at instruction
AC220/380/400
/415/440V 3Dia. Voltage to be arranged at instruction
AC220/380/400
/415/440V 3Dia. Voltage to be arranged at instruction
Oscillation Tube  E3062  7T85RB 7T69RB 7T69RB E3069
Rectifier  Silicon Rectifier  Silicon Rectifier Silicon Rectifier Silicon Rectifier Silicon Rectifier
Arc Suppressor Highly Sensitive Sparklet Preventor  Highly Sensitive Sparklet Preventor Highly Sensitive Sparklet Preventor Highly Sensitive Sparklet Preventor Highly Sensitive Sparklet Preventor
Upper Plate (mm)  200 x 300  200 x 300 350 x 550 350 x 550 350 x 550
Lower Plate (mm)  300 x 400  300 x 400 400 x 600 400 x 600 400 x 600
Press Stroke (mm)  100mm  100mm 150mm 150mm 150mm
Slide Table Type  Manual Turntable  Manual Turntable Manual Turntable Manual Turntable Manual Turntable
Welding Head Operation  Pneumatic  Pneumatic Pneumatic Pneumatic Pneumatic
