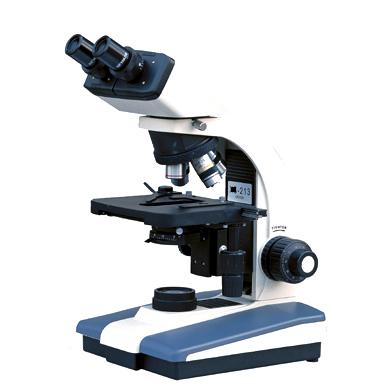

lab compound microscope

lab compound microscope

lab compound microscope

Product ID: xs-213

Send Inquiry
XS-213 biological microscope can be used for biological bacteriological, pathological observation, education, clinical experiment and routine examination in medical and hygienic establishments, laboratory, research instiutes and colleges. It is designed in an advanced way and shaped in a novel style. The adoption of various advanced constructions and technology makes the instrument comfortable and reliable to operate.

It can be equipped with dark field, phase contrast, and video attachment.

Specifications
Optional Accessories
XS-213- P Polarization Microscope
Item Specification 201 202
Viewing head
Siedentopf Binocular Head Inclined at 30 degree
Sliding Binocular Head Inclined at 45 degree
Eyepiece WF10X-18mm(One Pair)
Objective
Achromatic 4X, 10X, 40X(S), 100X(S, Oil)
Plan Achromatic 4X, 10X, 40X(S), 100X(S, Oil)
Mechanical Stage Size: 138mm 156mm
Stage X-movement Range: 76mmI=Y-movement Range: 50mm
Focus Coaxial Coarse and Fine Focus Adjustment

Adjustment Division of Fine Focus Adjustment: 0.002mm
Condenser Abbe NA1.25 with Iris Diaphragm and Filter Holder
Illumination 6V20W T-H lamp with Adjustable Brightness
Eyepiece WF15X-13mm
Objectives
Achromatic 20X, 60X
Plan Achomatc 20X, 60X
Phase Contrast Set
Phase Contrast Plan-achromatic Objective 10X, 20X, 40X(S), 100X(S, Oil)
Turret Annular Phase Contrast Condenser, Centering Telescope
Darkfield Condenser NA=0.9(Dry), NA=1.3(Oil)
Polarization Set Simple Polarization Set
Video Attachment Video Adapter(0.5X, 0.75X,1X)

XS-213-P transmitted polarization microscope is very suitable for single polarization, othorgonal polarization, conoscopic observation and microphotography.

This microscope is a new product with comparatively complete functions and fine quality.

Magnification: 40x-630x

JIANGAN NOVLE OPTICS CO., LTD.
Fax: 0086?2568684063
E-Mail
st.cn111(#)gmail.com

zoom stereo microscope, lab compound microscope, usb digital microscope, binocular student microscope, kids microscope set, optical prism,optical lens
Specifications
.xs-213
Features
  • lab compound microscope
    • XS-213 biological microscope can be used for biological bacteriological, pathological observation, education, clinical experiment and routine examination in medical and hygienic establishments, laboratory, research instiutes and colleges. It is designed in an advanced way and shaped in a novel style. The adoption of various advanced constructions and technology makes the instrument comfortable and reliable to operate.
  • It can be equipped with dark field, phase contrast, and video attachment.
  • Specifications
  • Optional Accessories
  • XS-213- P Polarization Microscope
  • Item Specification 201 202
  • Viewing head
  • Siedentopf Binocular Head Inclined at 30 degree
  • Sliding Binocular Head Inclined at 45 degree
  • Eyepiece WF10X-18mm(One Pair)
  • Objective
  • Achromatic 4X, 10X, 40X(S), 100X(S, Oil)
  • Plan Achromatic 4X, 10X, 40X(S), 100X(S, Oil)
  • Mechanical Stage Size: 138mm 156mm
  • Stage X-movement Range: 76mmI=Y-movement Range: 50mm
  • Focus Coaxial Coarse and Fine Focus Adjustment
  • Adjustment Division of Fine Focus Adjustment: 0.002mm
  • Condenser Abbe NA1.25 with Iris Diaphragm and Filter Holder
  • Illumination 6V20W T-H lamp with Adjustable Brightness
  • Eyepiece WF15X-13mm
  • Objectives
  • Achromatic 20X, 60X
  • Plan Achomatc 20X, 60X
  • Phase Contrast Set
  • Phase Contrast Plan-achromatic Objective 10X, 20X, 40X(S), 100X(S, Oil)
  • Turret Annular Phase Contrast Condenser, Centering Telescope
  • Darkfield Condenser NA=0.9(Dry), NA=1.3(Oil)
  • Polarization Set Simple Polarization Set
  • Video Attachment Video Adapter(0.5X, 0.75X,1X)
  • XS-213-P transmitted polarization microscope is very suitable for single polarization, othorgonal polarization, conoscopic observation and microphotography.
  • This microscope is a new product with comparatively complete functions and fine quality.
  • Magnification: 40x-630x
  • JIANGAN NOVLE OPTICS CO., LTD.
  • Fax: +86 2568684063
  • E-Mail
  • st.cn111(#)gmail.com
  • zoom stereo microscope, lab compound microscope, usb digital microscope, binocular student microscope, kids microscope set, optical prism,optical lens
