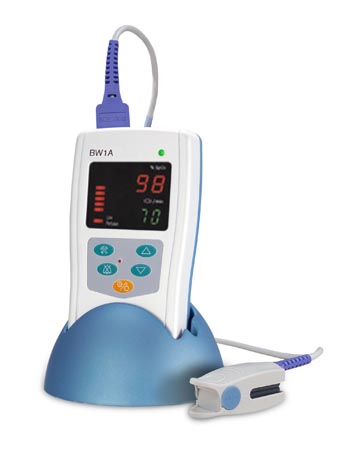

Handheld Pulse Oximeter

Product ID: BW1A

Send Inquiry
Product Features:

*With Alarm Function
*Bright, Easy-to-Read Large LED Display
*Durable, Compact and Lightweight
*Accurate, Reliable Readings During Low Perfusion and Motion
*Audible/Visual Alarms with Adjustable Alarm Limits
*Spot-Check and Continuous Monitoring
*Suitable for Adult, Pediatric and Neonate

Technical Specs

*SpO2
Measurement Range:0~100%
Accuracy:?% during 70%~100%
0%~69% unspecified

*Pulse Rate
Measurement range: 30 - 250 BPM
Accuracy: ? BPM or 2% take the bigger one

*Visual Displays and Indicators
Sp02 Display: Red LED, variable brightness
Pulse Rate Display: Green LED, Variable brightness
Pulse intensity: Red LED 8 Bars
Power Indicator Light: Green
Low Power Voltage: Red and Blink
Low Perfusion Indicator: Red

*Audio Indicators
Sensor off (Every 30 seconds)
Pulse beep
Key-Pressing
Low Battery

*Dimensions
130mm(H)?9mm(W)?2mm(D)

Weight(with batteries/without batteries):195g/100g

*Environmental Specifications
Operation Temperature: 0~50℃
32~122℉
Humidity: ≤95%
Altitude: -390~5,000m(-1,280~16,404ft)
Transport/Storage Temperature: -40~+70℃ (-40℉~158℉)
Humidity: ≤95%

*Power requirements
Four standard "AA" size Batteries
Batteries Capacity: 17 hours

*Alarm
Audible and Visual Alarms for High/Low
SpO2 and Pulse Rate
Alarm Limits Adjustable
Alarm Silence Interval: 30,60,90and120sec
Low Perfusion Warning Indicator
Sensor Disconnect Alarm
Low-battery Warning Indicator

*Compliance
SpO2: ISO9919:2005
Safety Standards:En60601-1: 1990+A1: 1993+A2:1995+A13: 1996 Type BF-Applied
Alarm: IEC60601-1-1-8: 2005
EMC: EN60601-1-2: 2001, Group1 Class A
Environment: WEEE(2002/96/EC)
