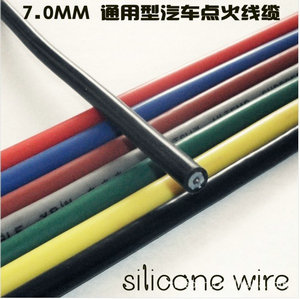

Ignition cable

Product ID: Silicone cable

Send Inquiry
The Technical Indices for wire
  Specification
Test item 5mm 7mm 8mm ≥ 9mm
Implemented standard GB/T14820.3-93,ISO3808/2-1980
Shore-Hardness 75°±3°
Breakdown Voltage ≥25kv ≥35kv ≥35kv ≥40kv
TYPEA(Resistance)
TYPEB(Resistance)
TYPEC(Reactance)
Resistance(TypeA,B) 16KOHM/m±30%
Resistance(TypeC)   Wire winding0.5kohm-16kohm
Diameter of cable 5mm+ 0.3mm 7mm± 0.3mm 8mm± 0.3mm ≥ 9mm± 0.3mm
Working temperature range ’ -40℃ ~+ 220℃
Tensile strength ≥23KN
Certificate
  • ISO

Main Products

Ignition cable set, spark plug wire set, Ignition wire boots
