Cable carrier A8012
Click here for details.Features
- Material: Galvanized steel sheet, supported by inner stainless steel plate.
- Fastening: Flanges are welded to both ends of the flexible conduit to insure electricity continuity.
- Length:
- Fixed at the middle: Total length = stroke / 2 + 4 times bending radius + 50 mm.
- Fixed at single side: Total length = stroke + 4 times bending radius + 50mm.
- Size selection: To determine interior size, a 30 ~ 40% allowance should be added to the outside diameter of the enclosed cables to prevent binding.
- Bending: It's better to choose by 8-10 times of the outside diameter of total enclosed cables for selecting the bending radius.

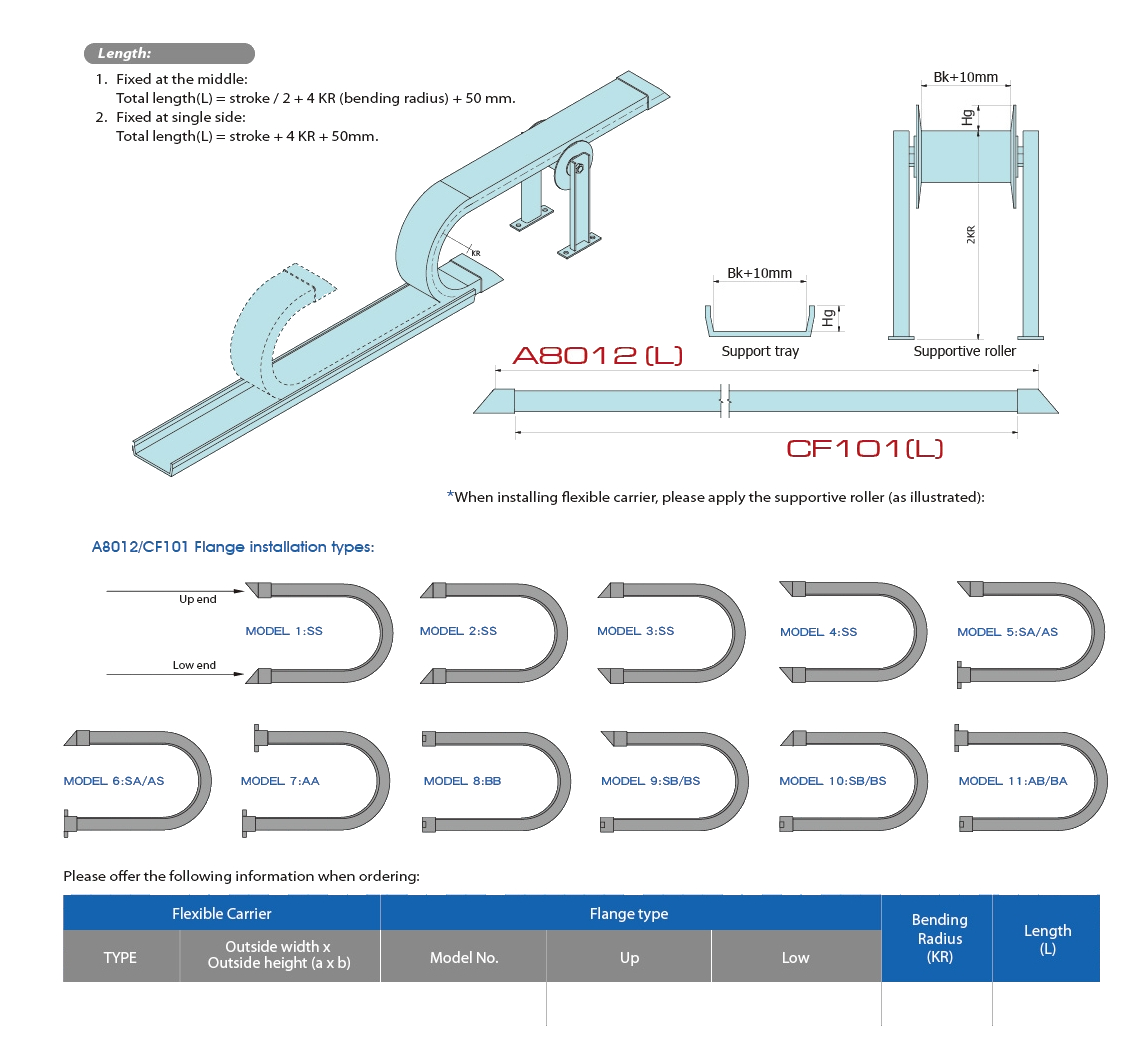

- Fitting: The type of A, B, S, as picture on request.
- Security guarantee should be in the limit of 60 ~ 70% of capacities, out of this limitation, it would be artificial improper disposal.
- Suggest to install the support holder to extend the life of using.
- Robust and durable.
- RoHS compliant.
- Other cable carrier type CF101 and cable drag chain type A8019 are available.
Type | Outside Width(Bk)(mm) | Outside Height (Hg)(mm) | Inside Width(Bi)(mm) | Inside Height(Hi)(mm) | Min. Bending Radius (KR) ±10%(mm) | Suggested Length(MAX)(mm) |
A8012-1 | 50 | 30 | 43 | 23 | 100 | 3000 |
A8012-2 | 80 | 45 | 73 | 38 | 120 | 4000 |
A8012-3 | 110 | 60 | 102 | 52 | 140 | 5000 |
A8012-4 | 130 | 65 | 122 | 57 | 150 | 5000 |
A8012-6 | 150 | 70 | 142 | 62 | 170 | 5000 |
A8012-7 | 170 | 80 | 162 | 72 | 200 | 5000 |
* Detailed flange types and dimensions, please see the attached catalog.
