Flexible cable drag chain A8019

Flexible cable drag chain A8019

Click here for details.

Plastic Cable Drag Chain

Product ID: A8019

Send Inquiry

Brand: BESUN

Features
  • Material: PA6 + fiber reinforced plastic (FRP), chemical resistant, temperature range from -20°C~+125°C, suitable for long-term movent.
  • Simply use slotted screwdriver to open the cap, convenient for the installation and change of wires and all kinds of conduits.
  • Use divider to separate wires and conduits with different sizes in case of twist or electric wave interference.
  • Suitable for: Machine tools, robots, fiber machine, protective tubes of pneumatic tube, hydraulic cylinder, rubber tubes for gas & liquid.
  • Other cable carrier type A8012 and type CF101 are available.

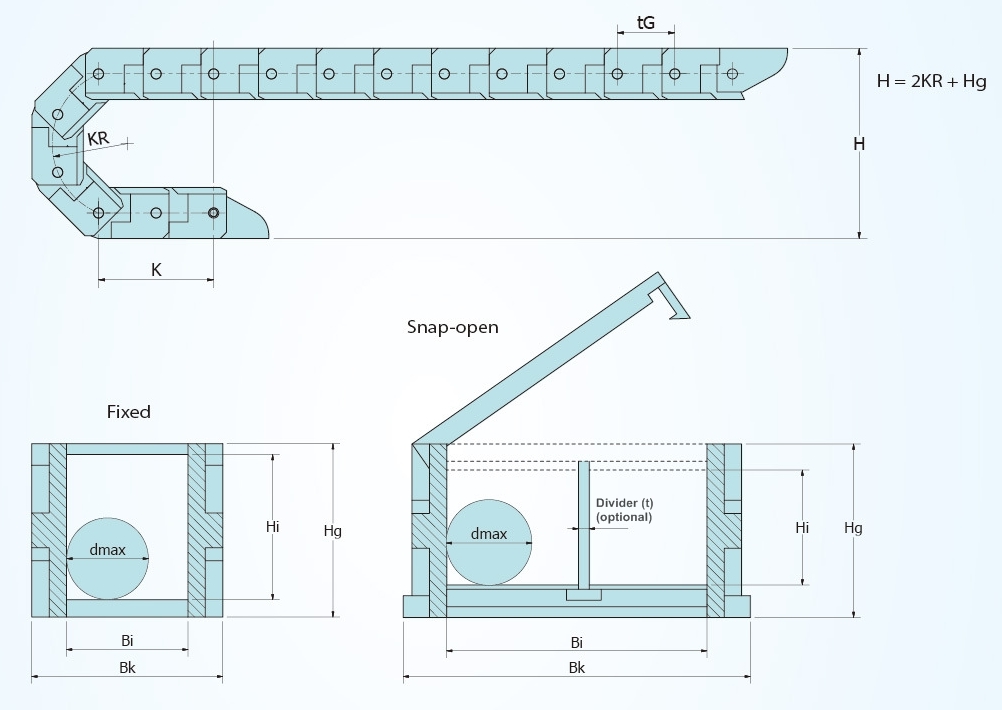

Type Outside Width
(Bk) (mm)
Outside Height
(Hg) (mm)
Inside Width
(Bi) (mm)
Inside Height
(Hi) (mm)
Bending Raduis
(mm)
Picth (tG) (mm) Max. Diameter
(dmax) (mm)
Cap Divider (t)
(mm) (optional)
A8019-0 24 25 13 19 37 32.5 11 Fixed -
A8019-1 37 27 24 19 37, 47, 77, 100 32.5 16 Fixed -
A8019-2 57 40 38 24 52, 94, 125, 150 45.5 22 Snap-open 2.5
A8019-3 77 40 58 24 52, 94, 125, 150, 200 45.5 22 Snap-open 2.5
A8019-4 97 40 78 24 52, 94, 125,  200 45.5 22 Snap-open 2.5
A8019-5 93 62 65 34 90, 125, 200 63.0 31 Snap-open 3.5
A8019-6 136 62 108 34 90, 125, 200, 300 63.0 31 Snap-open 3.5

* Detailed flange types and dimensions, please see the attached catalog.
