BZ-2

BZ-2

Click here for details.

Siren

Product ID: BZ-2

Send Inquiry

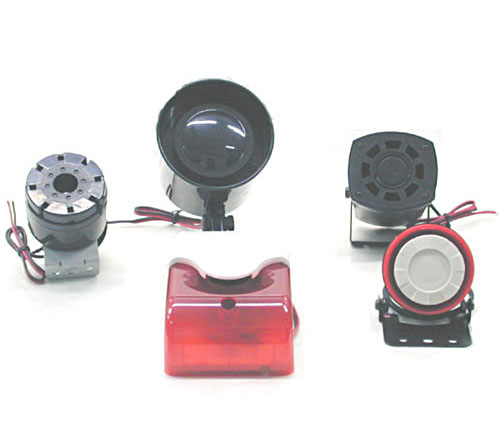

Piezo Siren N/A N/A N/A N/A N/A N/A
Models Resonant Frequency KHz Operating Voltage VDC S.P.L. 12VDC/100cm dB(Min) Current Consumption mA(Max) at 12VDC Tone Sweet (pulse) RateHz +- 20% Dimensions (For Reference) (rx H)
PS-510 3.0 +- 0.5 12 108 250 Constant 70.0mm x 74.0mm
PS-510-24 3.0 +- 0.5 24 108 250 Constant 70.0mm x 74.0mm
PS-511 3.0 +- 0.5 12 108 250 Pulse 1.2 70.0mm x 74.0mm
PS-511-24 3.0 +- 0.5 24 108 250 Pulse 1.2 70.0mm x 74.0mm
PS-512 2.5/3.5 12 108 250 Hi/Low 1.2 70.0mm x 74.0mm
PS-512-24 2.5/3.5 24 108 250 Hi/Low 1.2 70.0mm x 74.0mm
PS-513-24 1.5~3.5 24 110 400 Sweep 3.3 70.0mm x 74.0mm
PS-520 3.0 +- 0.5 12 105 200 Constant 70.0mm x 74.0mm
PS-520-24 3.0 +- 0.5 24 105 200 Constant 44.5mm x 57.5mm
PS-521 3.0 +- 0.5 12 105 200 Pulse 1.2 44.5mm x 57.5mm
PS-521-24 3.0 +- 0.5 24 105 200 Pulse 1.2 44.5mm x 57.5mm
PS-522 2.5/3.5 12 105 200 Hi/Low 1.2 44.5mm x 57.5mm
PS-522-24 2.5/3.5 24 105 200 Hi/Low 1.2 44.5mm x 57.5mm
PS-523A 1.5~4.0 12 105 200 Sweep 4.5 44.5mm x 57.5mm
PS-530 2.8 +- 0.5 12 105 200 Constant 85.0mm x 42.0mm
PS-530-24 2.8 +- 0.5 24 105 200 Pulse 1.2 842.0mm x 42.0mm
PS-531 2.8 +- 0.5 12 105 200 Pulse 1.2 85.0mm x 42.0mm
PS-531-24 2.8 +- 0.5 24 105 200 Hi/Low 1.2 842.0mm x 42.0mm
PS-532 2.3/3.5 12 105 200 Hi/Low 1.2 85.0mm x 42.0mm
PS-532-36 2.3/3.5 36 105 200 Sweep 3.3 85.0mm x 42.0mm
PS-532-36 2.3/3.5 36 105 200 Constant 85.0mm x 42.0mm
PS-533 1.5~3.5 12 105 200 Constant 85.0mm x 42.mm
PS-550 2.8 +- 0.5 12 105 200 Constant 54.3mm x 41.0mm
PS-550-24 2.8 +- 0.5 24 105 200 Constant 54.3mm x 41.0mm
PS-551 2.8 +- 0.5 12 105 200 Pulse 1.2 54.3mm x 41.0mm
PS-551-24 2.8 +- 0.5 24 105 200 Pulse 1.2 54.3mm x 41.0mm
PS-552 2.5/3.5 12 105 200 Hi/Low 1.2 54.3mm x 41.0mm
PS-552-24 2.5/3.5 24 105 200 Hi/Low 1.2 54.3mm x 41.0mm
PS-553 1.5~3.5 12 105 200 Sweep 3.3 54.3mm x 41.0mm
PS-593 1.5~3.5 12 115 250 Sweep 3.3 54.5 x 56.0mm
PS-593L 1.5~3.5 12 115 250 Sweep 3.3 54.5mm x 55.0mm
PS-562 2.5/3.5 12 100 40 Hi/Low 1.2 42.0mm x 16.0mm
PS-580 2.8 +- 0.5 12 100 150 Constant 50.0mm x 18.0mm
PS-583 1.5~3.5 12 100 150 Sweep 3.3 50.0mm x 18.0mm
PS-570 2.8 +- 0.5 12 105 200 Constant 61.5mm x 84.5mm
PS-570-24 2.8 +- 0.5 24 105 200 Constant 61.5mm x 84.5mm
PS-571 2.8 +- 0.5 12 105 200 Pulse 1.2 61.5mm x 84.5mm
PS-571-24 2.8 +- 0.5 24 105 200 Pulse 1.2 61.5mm x 84.5mm
PS-572 2.5/3.5 12 105 200 Hi/Low 1.2 61.5mm x 84.5mm
PS-572-24 2.5/3.5 24 105 200 Hi/Low 1.2 61.5mm x 84.5mm
PS-573 1.5~3.5 12 105 200 Sweep 3.3 61.5mm x 84.5mm
PS-393 1.5~3.5 12 108 600 Sweep 3.3 64.7mm x 64.5mm
PS-713A 1.5~3.5 12 105 150 Sweep 3.3 55.0mm x 51.0mm
PS-723A 1.5~3.5 12 105 150 Sweep 3.3 47.0mm x 22.0mm
PS-953S 1.5~3.5 12 105 150 Sweep 3.3 50.0mm x 38.0mm
PS-953L 1.5~3.5 12 105 150 Sweep 3.3 50.0mm x 38.0mm
PS-953 1.5~3.5 12 105 150 Sweep 3.3 33.0mm x 33.0xx
PS-983 1.5~3.5 12 105 150 Sweep 3.3 51.0mm x 34.5mm
PS-983A 1.5~3.5 12 105 150 Sweep 3.3 60.0mm x 33.0mm
PS-983C 1.5~3.5 12 105 150 Sweep 3.3 55.0mm x 20.0mm
PS-983H 1.5~3.5 12 105 150 Sweep 3.3 58.0mm x 34.0mm
Intruder Alarm Strobe N/A N/A N/A N/A N/A N/A
Models Resonant Frequency KHz Operating Voltage VDC S.P.L. 12VDC/100cm dB(Min) Current Consumption mA(Max) at 12VDC Tone Sweep (pulse) Rate Hz +- 20% Dimensions (For Reference) (rx H)
PS-903 1.5~3.85 12 105 500 Sweep 3.3 122.0mm x 35.0mm
PS-903N 1.5~3.5 12 105 250 Sweep 3.3 122.0mm x 40.0mm
PS-913 1.5~3.5 12 105 500 Sweep 3.3 122.0mm x 43.0mm
PS-913A 1.5~3.5 12 105 250 Sweep 3.3 122.0mm x 35.0mm
PS-943 1.5~3.5 12 105 250 Sweep 3.3 126.0mm x 48.0mm
Panel Mounting Type N/A N/A N/A N/A N/A N/A
Models Resonant Frequency KHz Operating Voltage VDC S.P.L. 12VDC/100cm dB(Min) Current Consumption mA(Max) at 12VDC Tone Sweep (pulse) Rate Hz +- 20% Dimensions (For Reference) (rx H)
PS-565-EP-S 1.5~3.5 12 100 200 Sweep 3.3 43.0mm x 42.5mm
PS-565EP-H 2.5/3.5 12 100 200 Hi/Low 1.2 43.0mm x 42.5mm
PS-565ER-S 1.5~3.5 12 100 200 Sweep 3.3 43.0mm x 42.5mm
PS-565ER-H 2.5/3.5 12 100 200 Hi/Low 1.2 43.0mm x 42.5mm

Main Products

Buzzer, Piezo Buzzer, siren, Magnetic Transducer, Industrial PC Chassis & Disk Array, Sound Card, Server Case
