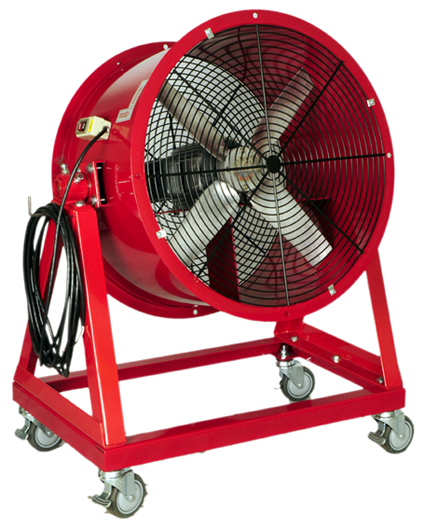

SADM-24
Click here for details.
【Product Features】
◎ Special fan blade design for larger air volume and longer air supply.
◎ Easy to move; The angle can be adjusted for more convenient use.
◎ It can be used for ventilation to make air flow centralized and straight, and the voltage can be made according to the requirements.
◎ The fan guard is 10mm clearance for safe use.
◎ With current overload protection switch.
【Notice】
◎ The volume data is for reference only, the actual decibel value will vary depending on the installation method and use environment.
Model | SADM-24 | SADM-36 |
Motor | AC Motor | AC Motor |
SPEED(RPM) | 1700 | 820 |
(HP) | 1HP*4P | 3HP*8P |
Phase(Ø) | 3Ø | 3Ø |
HZ | 60 | 60 |
Voltage(V) | 220/380V | 220/380V |
Dimensions (mm) |
167 | 550 |
Noise dB (A) | 91 | 89 |
Net weight (NW) | 63 | 120 |
