RR1 SERIES

RR1 SERIES

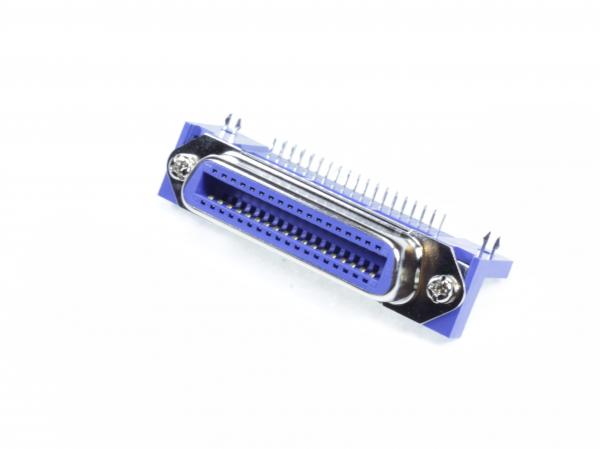

RR2 SERIES

RR2 SERIES

Centronic PCB Right Angle Type ((57LE-10140,57LE-10240,57LE-10360,57LE-10500,57LE-20140,57LE-20240,57LE-20360,57LE-20500))

Product ID: RR1 / RR2

Send Inquiry

RR2-24S or RR1-24P was connect  to GPIB equipment.

Female or Male IEEE-488 Connector, right angle PC terminals.

Specifications
  • 1. TYPE
    • RR1: 57 R/A DIP MALE
    • RR2: 57 R/A DIP FEMALE
  • 2. No. OF CONTACTS
    • 14, 24, 36, 50
  • 3. CONTACT TYPE
    • P: PlUG
    • S: SOCKET
  • 4. INSULATOR COLOR
    • B: BlUE
    • K: BLACK
  • 5. CONTACT PLATING
    • A: GOLD FLASH
    • E: 15u"
    • F: 30u"
  • 6. SHELL PLATINF
    • A: NICKEL
  • 7. TERMINAL LENGTH
    • A: 4.75mm
    • G: 3.2mm
  • 8. GROUND TAB
    • A: L SHAPE
    • P: Z SHAPE
  • 9. SPECIAL FUNCTION
    • A: 4.8mm HEX SCREW LOCK
    • H: IEEE488 HEX SCREW LOCK
  • 10. SPECIAL FUNCTION
    • A: SCREW
    • M: RIVET
    • Q: RIVET+SCREW LOCK
  • 11. SPECIAL FUNCTION
    • A: W/H 4*7 SCREW
    • K: W/H 4.8mm HEX
    • H: W/H IEEE488 HEX
