Din Rail Type Terminal Blocks

Product ID: GGD

Send Inquiry
Specifications

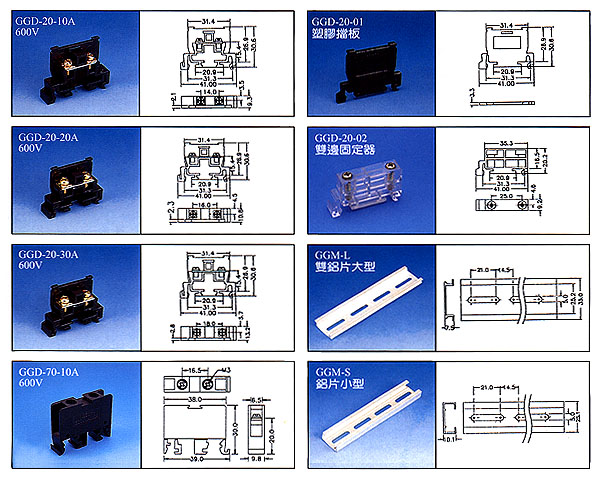

  • GGD-20-10A
  • GGD-20-20A
  • GGD-20-30A
  • Wire range: 12~22STR
  • Insulation withstands: AC2000V/min
  • Insulation resistance: 1000M(Ohm) or more at DC500V
  • Using temperature range: +40~120 (Celsius)
  • Screw torque value: 18kg-cm
  • Insulator body: A, B, S (UL94V-0)
  • Terminals: brass, tin-plated 1.2t
  • Terminal screws: M4 nickel-plated brass
Features
.With or With out cover.
