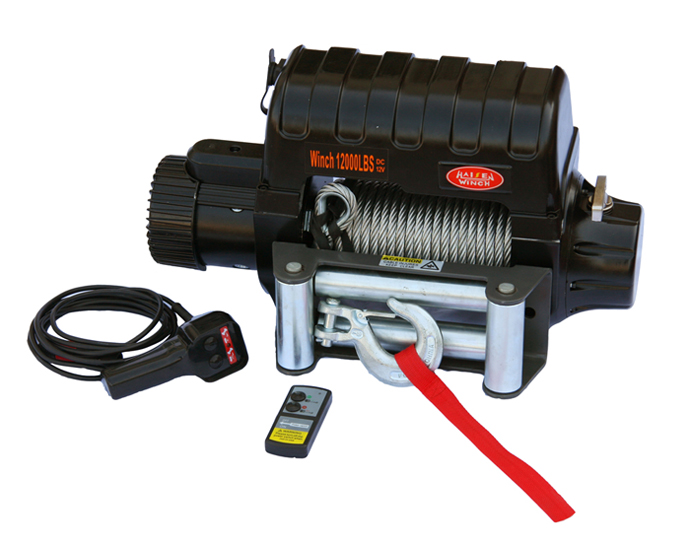

Provided by Haisen, the Power Winch is not only a practical drum handing equipment, but an useful tool which hoists and hauls the object with ease and efficiency.



Model: HSW-P12.0i

Rated Line Pull:12000lbs (5450kgs)

Power Winch Motor: 12V DC 6.6hp Series Wound, Sealed 24V Available

Control: handle remote control and Wireless (Optional)

Gear Train: All-metal 3-stage planetary

Gear Ratio: 178:1

Clutch (free spooling): Sliding ring gear

Brake of Power Winch: Automatic In-The-Base

Rope: 3/8'' diameter, 89' (9.5mm x 27m)

Drum Diameter/Length: 2.5”/8.8”(64mm/224mm)

Mounting Bolt Pattern:10”x4.5”(254mm x 114.3mm )

Fairlead: 4-Way Roller Fairlead

Recommended Battery: 650 CCA minimum for winching

Power Winch Battery Leads: 2 gauge, 73'' ( 1.85m )

Duty Cycle: Intermittent

Winch Dimension:21.1" x 6.5" x 10.6"( 535mm x 165mm x 270mm )

Packing Dimension: 26" L x 11.4"D x 14.6''H (660mm x 290mm x 370mm)

Shipping Weight: 91lbs (41.5kgs)
